61 13... Opening plug housings and removing contacts of different plug systems: Notes

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Abbreviations of contacts and what they mean:
ELA	Strand seal
D 1.5/2.5/3.5	Round contacts with 1.5 mm, 2.5 mm or 3.5 mm diameter
MDK	Miniature double flat spring contact
JPT	Junior Power timer
DFK	Double flat spring contacts
Elo	Electronic contacts
Elo Power	Electronic contacts for heavy load
MQS	Micro Quadlock system
MPQ	Micro Power Quadlock
MLK	Mini laminated contact
SLK	Sensor laminated contact
MLK	Mini laminated contact
Mcon	Multi contact

IMPORTANT:

The contacts can be changed on ultrasonically welded plugs (1).

Ultrasonically welded plugs (1) must be replaced completely.

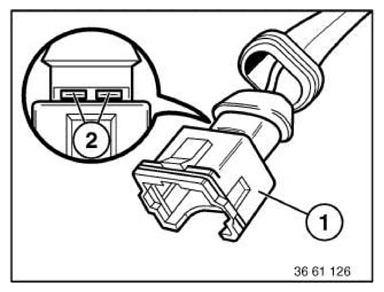

Ultrasonic-welded connectors (1) can be identified by the welds (2) on their longitudinal side.

Fig 1: Identifying Ultrasonic-Welded Connectors And Welds

Courtesy of BMW OF NORTH AMERICA, INC.

Repair instructions for opening plug housings and removing contacts of different plug systems:

Index of connectors:
