61 13... In-line plugs, 2-pin, System MDK 3 plus 2.8

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 316

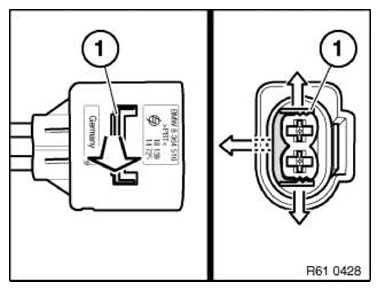

Unlock lock (1) on outside at retaining hook and slide out lock (1) to side.

Fig 1: Unlocking 2-Pin, System MDK 3 Plus 2.8 Lock

Courtesy of BMW OF NORTH AMERICA, INC.

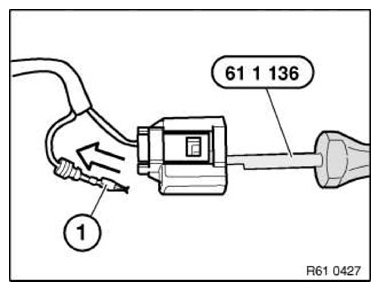

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 2: Unlocking 2-Pin, System MDK 3 Plus 2.8 Contact Using Special Tool (61 0 316)

Courtesy of BMW OF NORTH AMERICA, INC.
