61 13... Circular connector, 13-pin, system D2.5

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

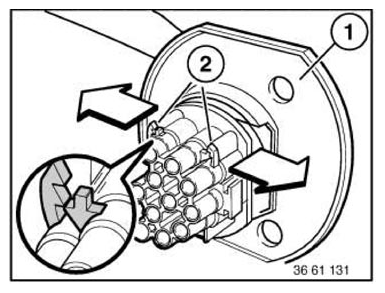

Pull off rubber grommet (1).

Carefully pull out lock (2) in direction of arrow.

Fig 1: Pulling Rubber Grommet Locks

Courtesy of BMW OF NORTH AMERICA, INC.

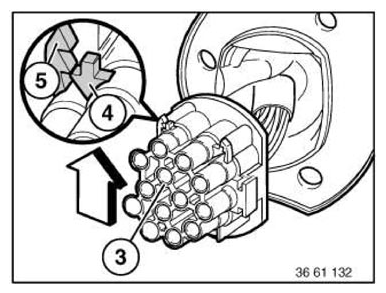

Move lower section of connector (3) in direction of arrow until retaining lugs (4) snap into release groove (5).

Fig 2: Moving Connector Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

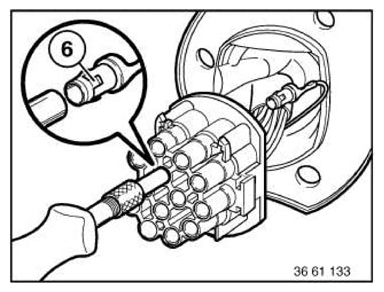

With special tool 61 0 303 , press down retaining lugs (6) of corresponding contact and pull out cable.

Fig 3: Pressing Corresponding Contact Retaining Lugs Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
