61 13... Control unit plugs, 25-, 35-, 55-, 83-, 88-pin

Special tools required:

• 61 0 312
• 61 0 314
• 61 0 315
• 61 0 323

Release screws (1).

Lever out pin sensor (2) with gasket (3) in direction of arrow.

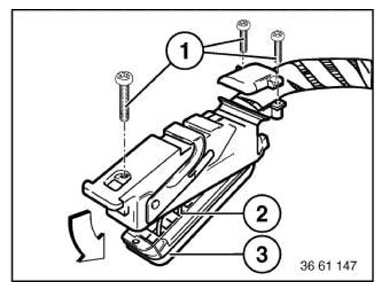

Fig 1: Removing Pin Sensor With Gasket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (3).

Pull out housing lock (4) in direction of arrow and unlock.

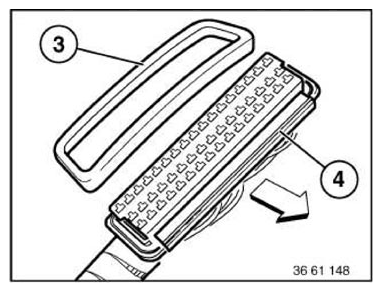

Fig 2: Removing Housing Lock And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

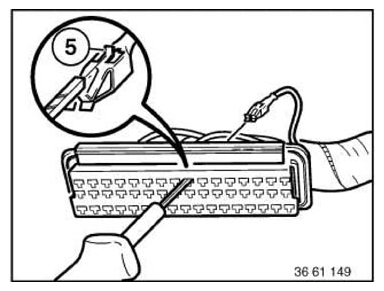

Press down retaining hook (5) of corresponding contact and pull out cable with contact.

Special tool 61 0 312 (61 1 134) for mini flat spring contacts.

Special tool 61 0 314 (61 1 135) for mini flat spring contacts.

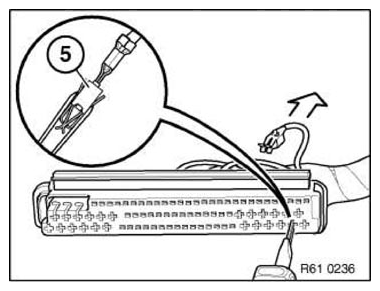

Fig 3: Pressing Control Unit Plug Retaining Hook Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 315 (61 1 151) for double flat spring contacts (dual retaining hooks).

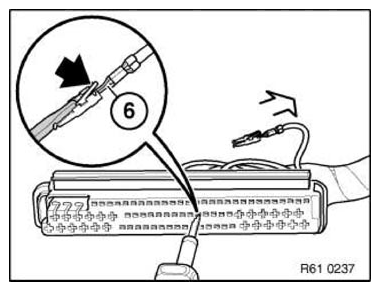

Fig 4: Removing Double Flat Spring Contacts Using Special Tool (61 0 315)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 0 323 (61 1 152) for double flat spring contacts (special retaining hook).

Fig 5: Pressing Double Flat Spring Contacts Using Special Tool (61 0 323)

Courtesy of BMW OF NORTH AMERICA, INC.
