61 13... Inline plugs, 4-, 10-pin, System Elo

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Detach fastener (1) from contact carrier (2).

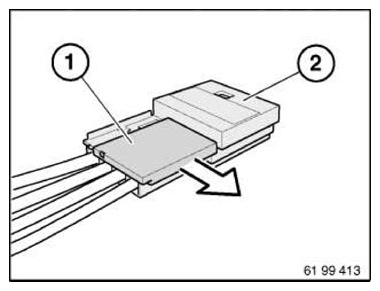

Fig 1: Removing 4-, 10-Pin, System Elo Contact Carrier Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (3) of defective contact and pull cable and contact up to secondary lock (6).

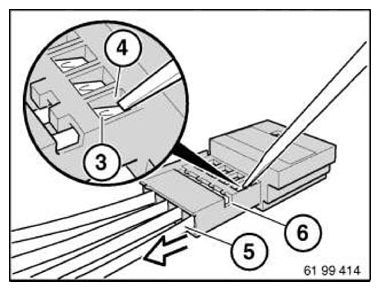

Fig 2: Holding 4-, 10-Pin, System Elo Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook once again in secondary lock and pull cable and contact completely out of contact carrier.

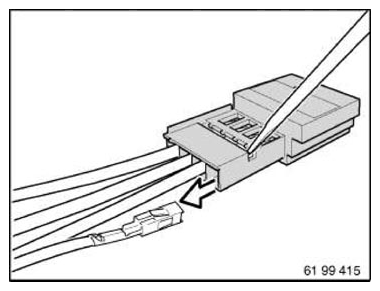

Fig 3: Holding 4-, 10-Pin, System Elo Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
