61 13... Inline connectors, 6-, 8-pin, System MQS

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

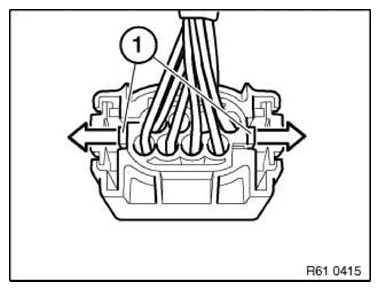

Press lock (1) in direction of arrow and slide connector forward.

Fig 1: Pressing 6-, 8-Pin, System MQS Lock

Courtesy of BMW OF NORTH AMERICA, INC.

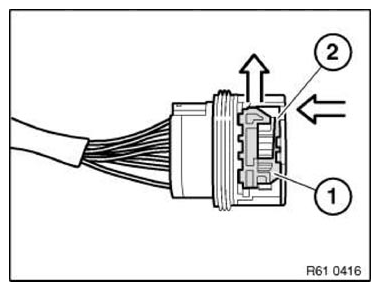

Press locking hook (2) downward and slide lock (1) out.

Fig 2: Pressing 6-, 8-Pin, System MQS Lock Hook

Courtesy of BMW OF NORTH AMERICA, INC.

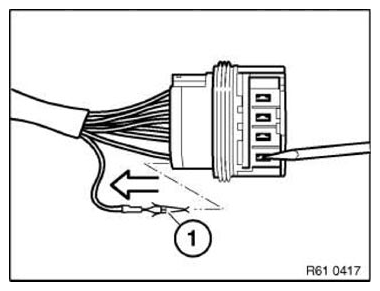

Press down retaining hook (1) with screwdriver and pull out cable with contact towards rear.

Fig 3: Pressing 6-, 8-Pin, System MQS Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.
