61 13... In-line plugs, 4-pin, System DFK ELA

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 316

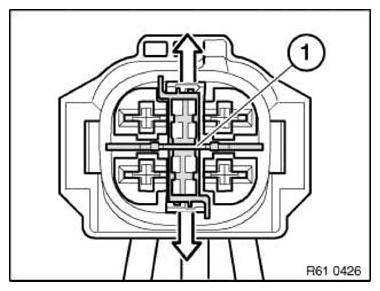

Press retaining hook in direction of arrow and remove lock (1).

Fig 1: Pressing 4-Pin, System DFK ELA Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Installation notes:

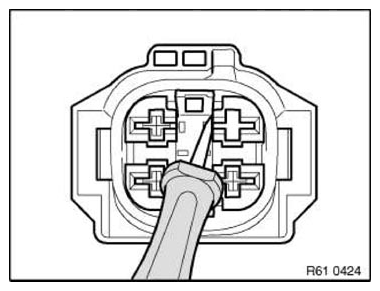

If necessary, side lock must also be unlocked with screwdriver.

Fig 2: Unlocking 4-Pin, System DFK ELA Side Lock Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

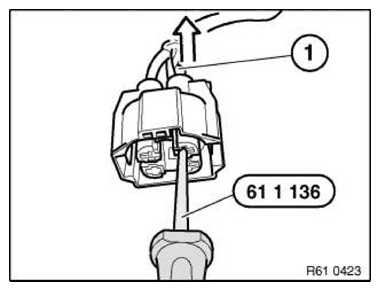

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 3: Removing 4-Pin, System DFK ELA Cable Using Special Tool (61 1 136)

Courtesy of BMW OF NORTH AMERICA, INC.
