61 13... Socket housing (radio connector), Hybrid System MQS/MPQ

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 314

Manufactured by AMP : The following contact types without strand sealing can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Removing MPQ contacts from radio connector:

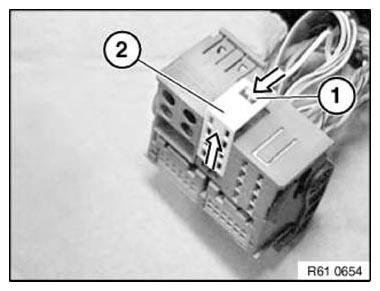

Press lock (1) in direction of arrow.

Detach secondary lock (2) from radio plug.

Fig 1: Removing Radio Plug Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

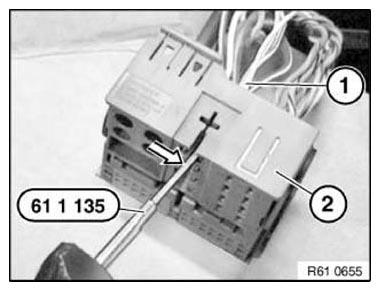

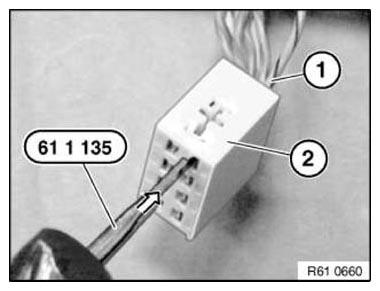

Feed special tool 61 0 314 (61 1 135) past side of contact.

Press special tool 61 0 314 (61 1 135) in direction of arrow.

Pull wire (1) with socket contact out of radio connector (2).

Fig 2: Pressing Special Tool (61 1 135) Into Radio Plug Contact

Courtesy of BMW OF NORTH AMERICA, INC.

Removing MQS contacts from contact carrier:

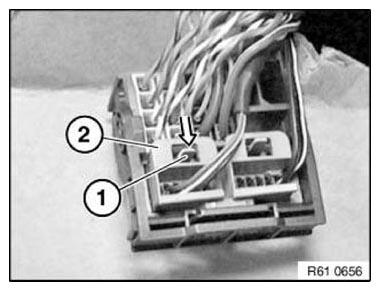

Press lock (1) in direction of arrow and pull housing (2) out of radio connector.

Fig 3: Pressing Radio Connector Housing Lock

Courtesy of BMW OF NORTH AMERICA, INC.

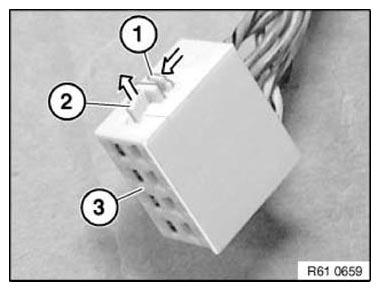

Press lock (1) in direction of arrow. Pull contact carrier (2) out of housing (3).

NOTE: When the contact carrier is pulled out, the secondary locks of the socket contacts are raised.

Fig 4: Pulling Radio Connector Housing Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram shows the 8-pin socket housing by way of example.

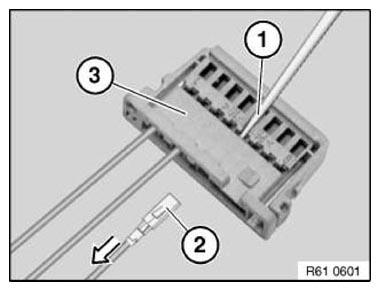

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

Fig 5: Holding Socket Contact Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

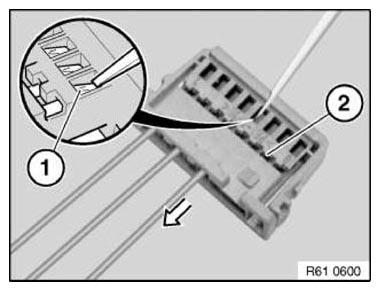

Hold down retaining hook in secondary lock (1) again. Pull wire with socket contact (2) out of contact carrier (3).

Fig 6: Holding Secondary Lock Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Removing MPQ contacts from contact carrier:

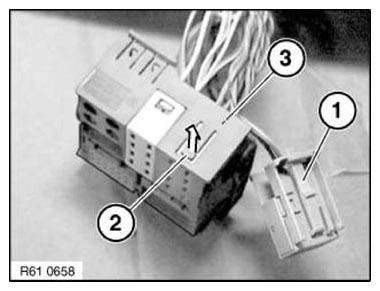

Remove contact carrier (1) with MQS contacts from radio connector.

Raise lock (2) on radio connector.

Pull contact carrier (3) out of radio connector.

Fig 7: Removing Radio Connector Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

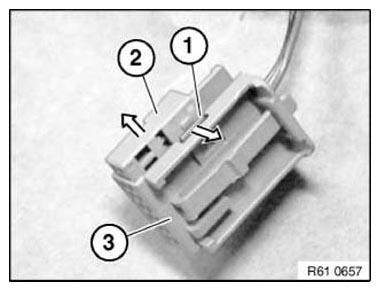

Press lock (1) in direction of arrow.

Pull secondary lock (2) in direction of arrow completely out of contact carrier (3).

Fig 8: Pulling Contact Carrier Secondary Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Press special tool 61 0 314 (61 1 135) on inside of contact into contact carrier (2).

Pull wire with socket contact (1) out of contact carrier (2).

Fig 9: Pressing Special Tool (61 1 135) Into Contact Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
