61 13... Inline connectors, 15-pin, System D2.5

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

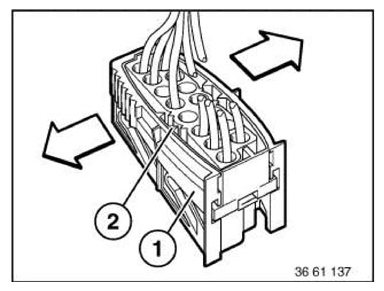

Carefully pull external connector (1) in area of retaining lugs (2) apart slightly.

Fig 1: Pulling 15-Pin, System D2.5 External Connector

Courtesy of BMW OF NORTH AMERICA, INC.

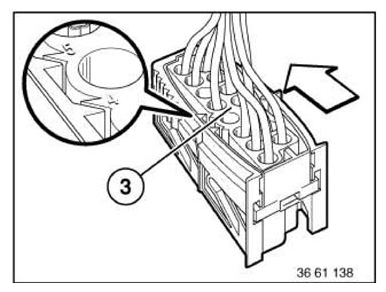

Pull internal connector (3) until limit position in direction of arrow.

Fig 2: Pulling 15-Pin, System D2.5 Internal Connector

Courtesy of BMW OF NORTH AMERICA, INC.

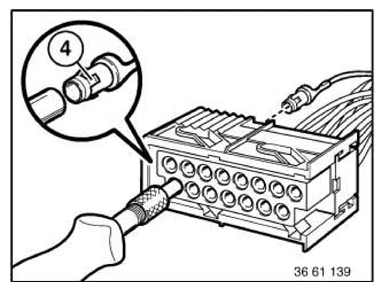

With special tool 61 0 303 press back retaining hook(4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing 15-Pin, System D2.5 Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
