61 13... Connector housing, LCC contact (load current contact)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 317

Socket housing:

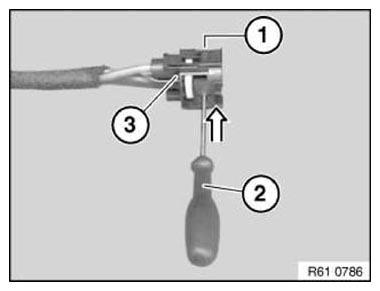

Press lock (1) with suitable tool (2) in direction of arrow out of socket housing (3).

Fig 1: Pressing LCC Contact Lock Using Suitable Tool

G11153034

Courtesy of BMW OF NORTH AMERICA, INC.

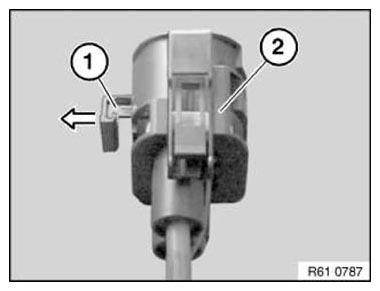

Pull lock (1) out of socket housing (2).

Fig 2: Pulling Socket Housing Lock

G11153035

Courtesy of BMW OF NORTH AMERICA, INC.

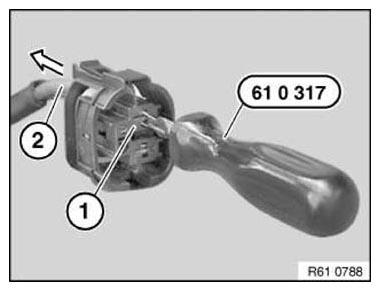

Insert special tool 61 0 317 into socket housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 3: Inserting Special Tool (61 0 317) Into Socket Housing

G11153036

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

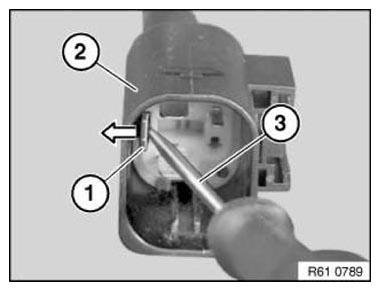

Unlock locking slide (1) of pin housing (2) with suitable tool (3) in direction of arrow.

Fig 4: Unlocking Pin Housing Locking Slide Using Suitable Tool

G11153037

Courtesy of BMW OF NORTH AMERICA, INC.

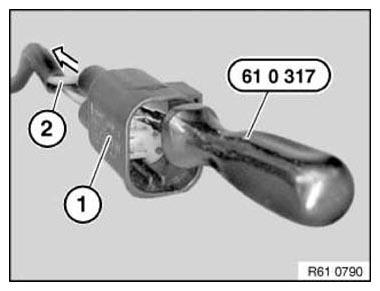

Insert special tool 61 0 317 into pin housing (1) and pull out wiring with LCC contact (2) in direction of arrow.

Fig 5: Inserting Special Tool (61 0 317) Into Pin Housing

G11153038

Courtesy of BMW OF NORTH AMERICA, INC.
