61 13... Circular plugs, 4-, 7-, 10- 12-, 25-pin, System D1.5/D2.5

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 303

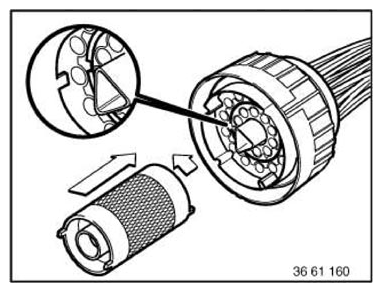

Insert special tool with suitable connection side in connector and twist approx. 3° counterclockwise.

Fig 1: Inserting Special Tool Into Connector With Suitable Connection Side

Courtesy of BMW OF NORTH AMERICA, INC.

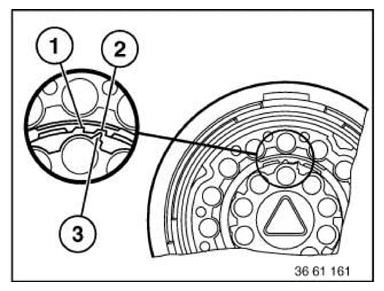

The connector is locked down if retaining lug (3) is located in locking groove (2).

Unlocking groove
Locking groove
Retaining lug

Fig 2: Identifying Retaining Lug, Unlocking And Locking Groove

Courtesy of BMW OF NORTH AMERICA, INC.

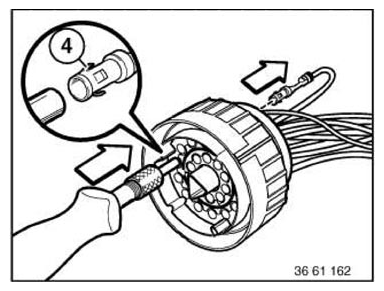

With special tool 61 0 303 press back retaining hook(4) of corresponding contact and pull out cable with contact.

Fig 3: Pressing Retaining Hook Using Special Tool (61 0 303)

Courtesy of BMW OF NORTH AMERICA, INC.
