61 13... Socket housing 42-, 43-, 46-pin, Hybrid System MQS/MPQ

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 312

Manufactured by AMP : The following contact types without strand sealing can be fitted in the socket housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Open secondary locks (1) on socket housing.

Press back retaining hook of MQS contacts (2) with special tool 61 0 312 61 1 134 and pull out cable with contact.

Press back retaining hook of MPQ contacts (3) with screwdriver and pull out cable with contact.

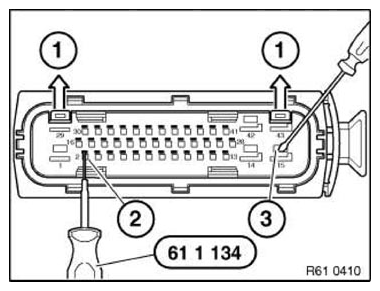

Fig 1: Pressing MQS Contact Retaining Hook Using Special Tool (61 1 134)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bend open retaining hook of contacts gently before inserting into connector housing.

For installation of contacts, observe chamber numbers on reverse side of socket housing.

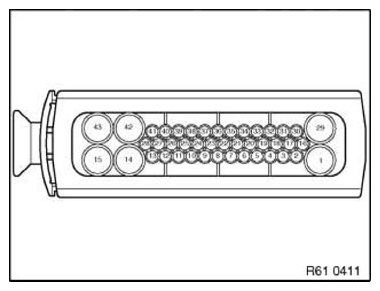

Fig 2: Identifying Socket Housing Chamber Numbers (Reverse Side)

Courtesy of BMW OF NORTH AMERICA, INC.
