61 13... In-line connectors, 30-pin, Hybrid System MQS/MPQ

Manufactured by AMP  : The following contact types without strand sealing can be fitted in the connector housings:

• MQS (Micro Quadlock System)
• MPQ, width 2.8 mm (Micro Power Quadlock)
• MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

Raise lock (1) on housing (2).

Push contact carrier (3) out of housing (2).

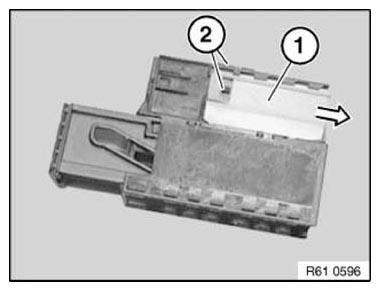

Fig 1: Removing Contact Carrier From Housing (30-Pin)

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

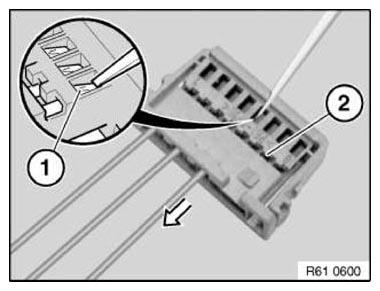

Fig 2: Holding Secondary Lock Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

Hold down retaining hook in secondary lock

(1) again and pull cable with socket contact

(2) completely out of contact carrier (3).

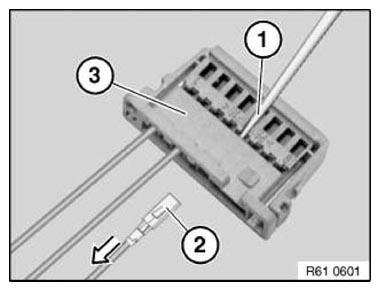

Fig 3: Holding Secondary Lock Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

Contacts 1... 13 and 19... 27:

Raise locking slide (1) on both sides (2) of housing and detach.

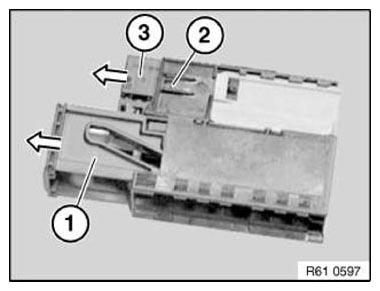

Fig 4: Removing Pin Housing Locking Slide

Courtesy of BMW OF NORTH AMERICA, INC.

Contacts 14... 18 and 28... 30:

Pull slide (1) outwards completely.

Raise lock (2) on housing.

Pull contact carrier (3) out of housing.

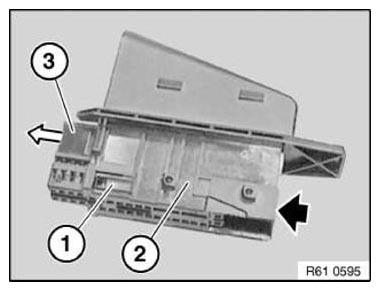

Fig 5: Removing Pin Housing Slide

Courtesy of BMW OF NORTH AMERICA, INC.

The pin contacts are pulled out of a contact carrier as described under "Socket housing".
