61 13... In-line plugs, 2-pin, System JPT ELA

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 0 316

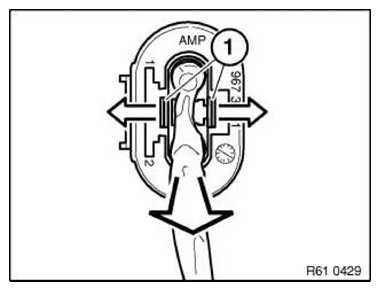

Press lock (1) in direction of arrow and slide connector forward.

Fig 1: Pressing 2-Pin System JPT ELA Lock

Courtesy of BMW OF NORTH AMERICA, INC.

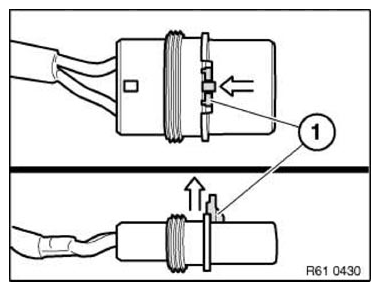

Press lock (1) downward and slide out to one side.

Fig 2: Pressing 2-Pin System JPT ELA Lock

Courtesy of BMW OF NORTH AMERICA, INC.

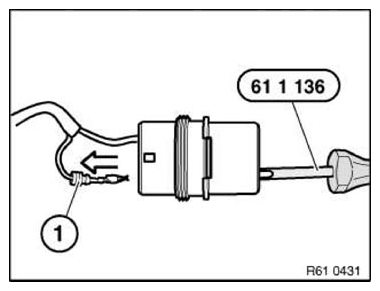

With special tool 61 0 316 (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Fig 3: Unlocking 2-Pin System JPT ELA Contact Using Special Tool (61 1 136)

Courtesy of BMW OF NORTH AMERICA, INC.
