61 13... In-line plugs, 6- to 50-pin, System Elo

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

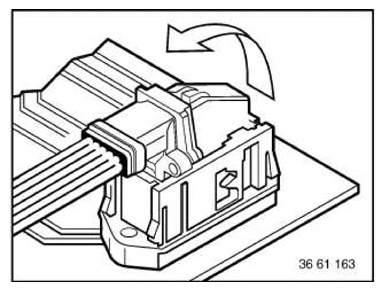

Open lock.

Fig 1: Opening 6- To 50-Pin, System Elo Lock

G11153111

Courtesy of BMW OF NORTH AMERICA, INC.

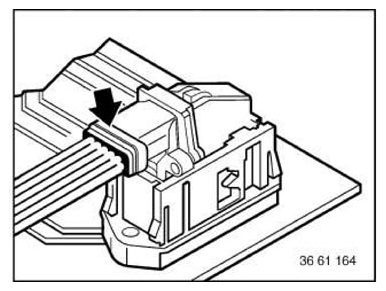

Detach cable strap.

Installation note:

Cable strap must be reinstalled.

Fig 2: Locating 6- To 50-Pin, System Elo Cable Strap

G11153112

Courtesy of BMW OF NORTH AMERICA, INC.

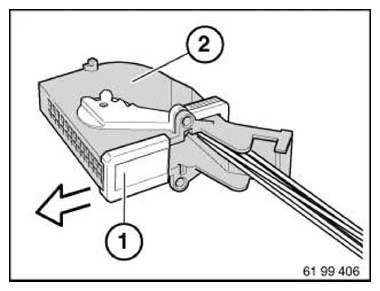

Detach catch (1) from connector housing (2).

Fig 3: Removing 6- To 50-Pin, System Elo Catch From Connector Housing

G11153113

Courtesy of BMW OF NORTH AMERICA, INC.

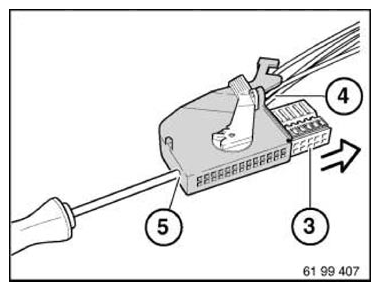

Press out contact carrier (3) with wiring harness (4) through opening (5).

Fig 4: Removing 6- To 50-Pin, System Elo Contact Carrier With Wiring Harness

G11153114

Courtesy of BMW OF NORTH AMERICA, INC.

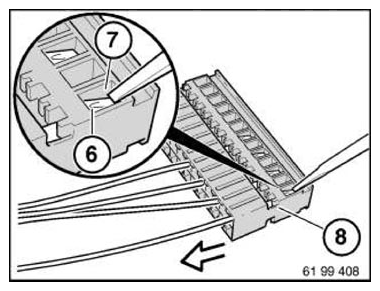

Hold down retaining hook (6) of defective contact and pull cable and contact up to secondary lock (8).

Fig 5: Holding 6- To 50-Pin, System Elo Retaining Hook

G11153115

Courtesy of BMW OF NORTH AMERICA, INC.

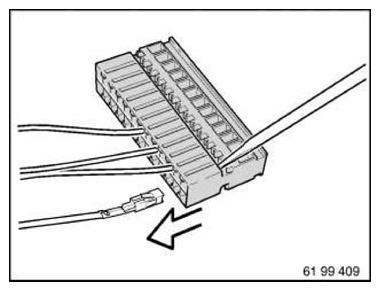

Hold down retaining hook once again in secondary lock (8) and pull cable and contact completely out of contact carrier.

Fig 6: Holding 6- To 50-Pin, System Elo Secondary Lock Retaining Hook

G11153116

Courtesy of BMW OF NORTH AMERICA, INC.
