61 13... In-line connectors, 24-/44-pin, Hybrid System MQS/MPQ

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Manufactured by AMP : The following contact types without strand sealing can be fitted in the connector housings:

MQS (Micro Quadlock System)
MPQ, width 2.8 mm (Micro Power Quadlock)
MPQ, width 5.2 mm (Micro Power Quadlock)

Socket housing:

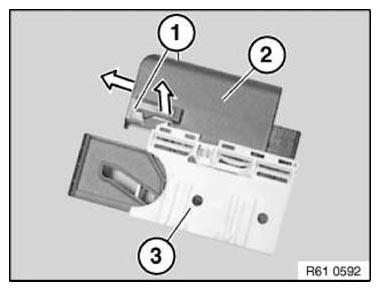

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from contact carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the socket contacts.

Fig 1: Removing Contact Carrier Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

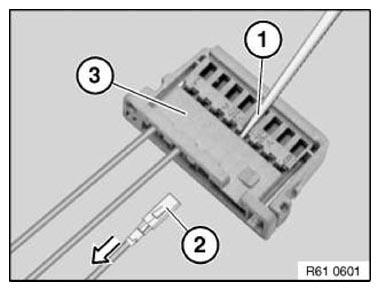

Hold down retaining hook (1) of socket contact in opening of contact carrier with a small screwdriver.

Pull wire with socket contact in direction of arrow as far as secondary lock (2).

Fig 2: Holding Secondary Lock Retaining Hook Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

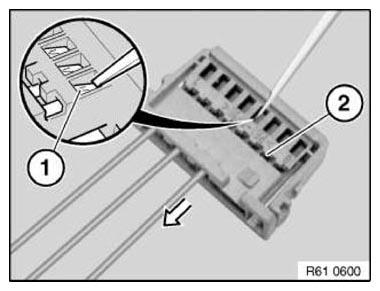

Hold down retaining hook in secondary lock (1) again and pull cable with socket contact (2) completely out of contact carrier (3).

Fig 3: Holding Secondary Lock Retaining Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Pin housing:

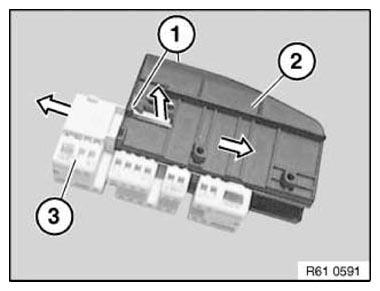

Press locks (1) on protective cap (2) upwards on both sides.

Detach protective cap from housing carrier (3).

NOTE: Detaching the protective cap releases the secondary locks of the pin contacts in the contact carriers.

Fig 4: Removing Housing Carrier Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

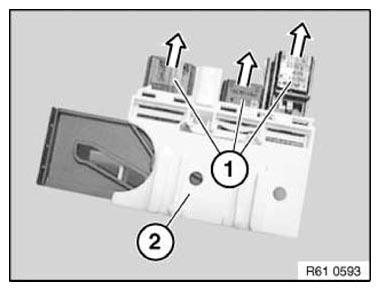

Pull contact carrier (1) out of housing carrier (2).

The pin contacts are pulled out of a contact carrier as described under "Socket housing".

Fig 5: Removing Contact Carrier From Housing Carrier

Courtesy of BMW OF NORTH AMERICA, INC.
