SERVICE SHEET for Mercedes-Benz Maintenance System (USA) - AP00.20-U-1208DF

MODEL 212.056/072/077/087/090 as of model year 2010 up to model year 2011

□ A-Service: At 10, 000 miles or 1 year, then every 20, 000 miles or 2 years

□ B-Service: At 20, 000 miles or 2 years, then every 20, 000 miles or 2 years

□ At 2, 000 miles, then if more than 40, 000 mi or 4 years since last replacement

□ If more than 40, 000 mi or 4 years since last replacement

□ If more than 60, 000 mi or 6 years since last replacement

□ If more than 150, 000 mi or 15 years since last replacement

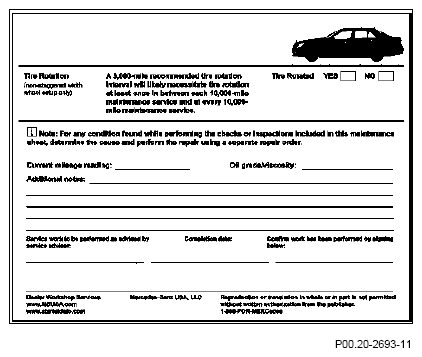

Fig 1: Identifying Service Sheet For Mercedes-Benz Maintenance System (USA)

Courtesy of MERCEDES-BENZ USA

Customer_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

VIN/license plate number_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Service code_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Remaining distance_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Oil type/viscosity_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Service consultation performed at vehicle

Order number_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Current mileage_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __

Workshop code_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __

Remaining time_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Completion time/date_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

Yes No

Notes/explanations_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

The following activities are hereby confirmed:

• Completion of relevant service operations

Signature_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

A	B		Input condition not OK:	ⓧ
Completed
		Required Service Work
□	□	Reset maintenance service indicator in instrument cluster	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP00.20-P-0042EW
□	□	Engine - oil and filter change	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
			engine 272.977		AP18.00-P-0101VA
			engine 272.980		AP18.00-P-0101PIT
			engine 273		AP18.00-P-0101SX
			engine 156		AP18.00-P-0101TMG
□	□	Check catch, safety catch and hinges on engine hood for proper operation	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP88.40-P-8851EW
	□	Check condition of poly-V-belt	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP13.22-P-1352EW
□	□	Clean visible area of water deflector	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP82.35-P-8232A
	□	Replace brake fluid	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP42.00-P-4280EW
	□	Replace combination or dust filter	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP83.00-P-8384EW
□	□	Check thickness of brake pads, front and rear	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP42.10-P-4253A
□	□	Correct tire inflation pressure including spare (where applicable) and enter in the table at the end of the service sheet	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP40.15-P-4061A
	□	Leakage - major components - check underbody and engine compartment for chafe marks, line routing, damaged components	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP00.20-P-0053EW
	□	Visually inspect condition of front axle ball joints, rubber boots	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP33.20-P-3353EW
	□	Visually inspect condition of driveshaft flexible discs	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP41.10-P-4152EW
	□	Visually inspect condition of steering mechanical components, rubber boots	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP46.00-P-4653EW
□	□	Coolant - check fluid level and correct if necessary	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ refer to AH20.00-P-1142-01CW observe correct coolant composition	◦
□	□	Brake system - check fluid level and correct if necessary	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP42.10-P-4210EW
□	□	Power steering - check fluid level and correct if necessary	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ except CODE 211 (Direct-Steer system)	◦
					AP46.00-P-4612EW
			the fluid level must always be on the maximum mark, corresponding to the oil temperature
□	□	Windshield washer system - check fluid level and correct if necessary	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP82.35-P-8210EW
	□	Parking brake (function test only)	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP42.00-P-4290BA
□	□	Reset reminder - if not yet performed maintenance service indicator in instrument cluster	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP00.20-P-0042EW
			reminder - if not yet performed
		Recommended Service Work
□		Replace combination or dust filter	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP83.00-P-8384EW
□	□	Replace wiper blades	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
□	□	Horn - Electrical system check	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
□	□	Warning/indicator lamps - Electrical system check	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP54.30-P-5453EW
□	□	Ilumination and interior lighting - Electrical system check	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP54.30-P-5451EW
□	□	Exterior lighting, high beam flasher, hazard warning flasher, turn signals - Electrical system check	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP82.10-P-8252EW
□	□	Check trunk/cargo area lighting	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
	□	Check and correct headlamp setting	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP82.10-P-8260EW
□	□	Battery (Main/starter/auxiliary) check condition using Midtronics battery tester. Attach Midtronics test report print out here	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP54.10-U-5453A
	□	Check seat belts and buckles for signs of external damage and proper function	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP91.40-P-9150EW
□	□	Check windshield washer and headlamp cleaning system	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP82.30-P-8252EW
	□	Check, clean, and lubricate tilt/sliding roof mechanism	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ where applicable	□
	□	Check, clean, and lubricate panoramic roof mechanism	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ with CODE 413 (panoramic sliding sunroof)	□
					AP77.20-P-7732EW
	□	Check bodywork for paintwork damage	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP98.00-P-9850EW
□	□	Tire rotation	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ where applicable	□
□	□	Inspect tires for damage, measure thread depth and enter table at the end of the service sheet	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP40.10-P-4051EW
□	□	Check TIREFIT tire sealant expiration date	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ where applicable	◦
					AP40.10-P-4054R
□	□	Activate Tire Pressure Monitoring System	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ refer to vehicle Operator's Manual	□
□	□	Visually check brake system components, lines, hoses, calipers	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
□	□	Check thickness of brake pads and discs, front and rear wheels removed	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
			pads		AP42.10-P-4253A
			discs - except CODE B07 (AMG high-performance ceramic composite braking system)		AP42.10-P-4258EW
			discs - CODE B07 (AMG high-performance ceramic composite braking system)		AP42.10-P-4258QQ
	□	Check chassis and load-bearing body components for damage and corrosion	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	◦
					AP00.20-P-0090EW
		Required Additional Work
		At 2, 000 miles, then if more than 40, 000 mi or 4 years since last replacement
		Rear axle differential fluid replacement	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ CODE 471 (manual locking differential)	□
					AP35.00-P-3501CMG
		If more than 40, 000 mi or 4 years since last replacement
		Automatic transmission - oil and filter change	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP27.00-P-2702W
		Replace air filter	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
			engine 272, 273		AP09.10-P-0980EW
			engine 156		AP09.10-P-0980CMG
		If more than 60, 000 mi or 6 years since last replacement
		Replace spark plugs	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
			engine 272, 273		AP15.10-P-1580EW
			engine 156		AP15.10-P-1580CMG
		If more than 150, 000 mi or 15 years since last replacement
		Replace fuel filter	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP47.20-P-0780EW
		Replace coolant	_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _	□
					AP20.00-P-2080EW
			observe correct coolant composition
