Replace coolant - AP20.00-P-2080EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 in MODEL 212

ENGINE 157, 276, 278, 642, 651 in MODEL 166

ENGINE 157, 276, 278, 642, 651 in MODEL 218

ENGINE 271, 272, 273, 274, 276, 278, 642, 651 in MODEL 207

MODIFICATION NOTES

26.9.14 coolant mixing ratio   BF20.00-P-1001-04A

Shown on model 212

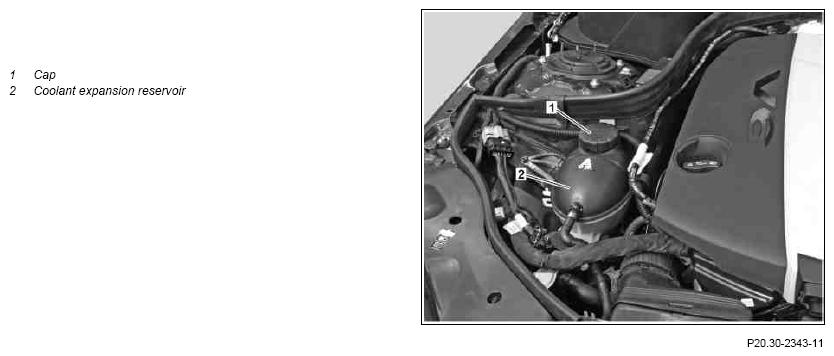

Fig 1: Cap & Coolant Expansion Reservoir
G09975279DANGERDANGERNOTESINSPECTREMOVINGREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREMOVINGREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRREFER TO TESTING & REPAIRNOTESIMPORTANTIMPORTANTIMPORTANTIMPORTANTFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONFLUID SPECIFICATIONCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.		 AS20.00-Z-0001-01A
NOTES Notes on coolant   AH20.00-N-2080-01A
INSPECT Check
1 Check coolant level MODEL 166 AP20.30-P-2050GB
MODEL 207, 212, 218 AP20.30-P-2050EW
REMOVING Remove
2 Drain coolant
REFER TO TESTING & REPAIR ENGINE 274 in MODEL 207, 212 AR20.00-P-1142MR
REFER TO TESTING & REPAIR ENGINE 651 in MODEL 212.098/298 AR20.00-P-1142EH
REFER TO TESTING & REPAIR ENGINE 157, 276, 278, 642, 651 in MODEL 166 AR20.00-P-1142GQ
REFER TO TESTING & REPAIR ENGINE 271 in MODEL 212 ENGINE 271, 272, 273, 642, 651 in MODEL 207 AR20.00-P-1142CW
REFER TO TESTING & REPAIR ENGINE 276.8 in MODEL 207 AR20.00-P-1142A
REFER TO TESTING & REPAIR ENGINE 276.9, 278 in MODEL 207 AR20.00-P-1142FH
REFER TO TESTING & REPAIR ENGINE 272, 273 in MODEL 212 AR20.00-P-1142EWS
REFER TO TESTING & REPAIR Engine 642 in model 212, 218 AR20.00-P-1142OGE
REFER TO TESTING & REPAIR ENGINE 651 in MODEL 212 (except 212.098/298), 218 AR20.00-P-1142OMA
REFER TO TESTING & REPAIR ENGINE 156 in MODEL 212 AR20.00-P-1142CMG
REFER TO TESTING & REPAIR Engine 157, 276, 278 in model 212, 218 AR20.00-P-1142EL
REMOVING Install
3 Pour in new coolant
REFER TO TESTING & REPAIR ENGINE 274 in MODEL 207, 212 AR20.00-P-1142MR
REFER TO TESTING & REPAIR ENGINE 651 in MODEL 212.098/298 AR20.00-P-1142EH
REFER TO TESTING & REPAIR ENGINE 157, 276, 278, 642, 651 in MODEL 166 AR20.00-P-1142GQ
REFER TO TESTING & REPAIR ENGINE 271 in MODEL 212 ENGINE 271, 272, 273, 642, 651 in MODEL 207 AR20.00-P-1142CW
REFER TO TESTING & REPAIR Engine 276, 278 in model 207 AR20.00-P-1142FH
REFER TO TESTING & REPAIR ENGINE 272, 273 in MODEL 212 AR20.00-P-1142EWS
REFER TO TESTING & REPAIR Engine 642 in model 212, 218 AR20.00-P-1142OGE
REFER TO TESTING & REPAIR ENGINE 651 in MODEL 212 (except 212.098/298), 218 AR20.00-P-1142OMA
REFER TO TESTING & REPAIR ENGINE 156 in MODEL 212 AR20.00-P-1142CMG
REFER TO TESTING & REPAIR Engine 157, 276, 278 in model 212, 218
NOTES
An engine filled with type 30 antifreeze must not be filled later on with conventional coolant as per Specification 325.0 or 325.2. Type 30 antifreeze may not  be mixed with other antifreezes and it must  be replaced every 3 years  !
Engine damage can occur otherwise.
IMPORTANT A special antifreeze (type 30) is available for the "light alloy corrosion in cooling circuit" repair case. Indications of light alloy corrosion in the cooling circuit are:
  • Sludging or gel formation in cooling system
  • Engine overheating
  • Flow rate deficiency in cooler

In these cases, a warning label (model 30) is to be attached in a well-visible spot on the coolant expansion reservoir.
IMPORTANT Use antifreeze model 30 if warning label (model 30) is present on the coolant expansion reservoir.
IMPORTANT ENGINE 207, 212
Do (2) not  fill the coolant expansion reservoir to the lower edge of the marking bar only, because at extremely low outside temperatures it is possible that the instrument cluster will briefly display a coolant level message.
The coolant expansion reservoir (2) may be filled when warm or cold to the lower edge of the filler neck  .
IMPORTANT Use approved anti-corrosion and antifreeze agents only.		 AR20.00-P-1142EL
FLUID SPECIFICATION Coolant mixing ratio *BF20.00-P-1001-04A
FLUID SPECIFICATION
ENGINE 156 in MODEL 212		 *BF20.00-P-1001-02U
FLUID SPECIFICATION ENGINE 157 in MODEL 166, 212, 218 *BF20.00-P-1001-02FA
FLUID SPECIFICATION
ENGINE 271.8 in MODEL 207, 212
ENGINE 271.9 in MODEL 212		 *BF20.00-P-1001-02P
FLUID SPECIFICATION
ENGINE 274 in MODEL 207
ENGINE 274 in MODEL 212 (except 212.035)
ENGINE 274 in MODEL 212.035		 *BF20.00-P-1001-02CA
FLUID SPECIFICATION ENGINE 276 in MODEL 166, 218 ENGINE 276.8 in MODEL 207, 212 ENGINE 276.9 in MODEL 207, 212 *BF20.00-P-1001-02BA
FLUID SPECIFICATION ENGINE 278 in MODEL 166, 207, 212, 218 *BF20.00-P-1001-02EA
FLUID SPECIFICATION ENGINE 642 in MODEL 166, 212, 218 ENGINE 642 in MODEL 207.323/423 ENGINE 642 in MODEL 207.326/426 *BF20.00-P-1001-02W
FLUID SPECIFICATION ENGINE 651, 212, 207 in MODEL 166, 218 *BF20.00-P-1001-02AA
COOLING SYSTEM

Number Designation ENGINE 651 in MODEL 166 ENGINE 651 in MODEL 204, 207, 212 (except 212.098/298)
BF20.00-P-1001-02AA Cooling system Workshop replacement quantity Main circuit Liter ≈10, 0 ≈10, 0
Low temperature circuit Liter - -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 651 in MODEL 212.098/298 ENGINE 651 in MODEL 218
BF20.00-P-1001-02AA Cooling system Workshop replacement quantity Main circuit Liter ≈10, 0 ≈10, 4
Low temperature circuit Liter ≈1, 0 -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 276 in MODEL 166 ENGINE 276.8 in MODEL 207 (except 207.365/465)
BF20.00-P-1001-02BA Cooling system Workshop replacement quantity Main circuit Liter ≈10, 5 ≈10, 3
Low temperature circuit Liter - -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 276.8 in MODEL 207.365/465 ENGINE 276.9 in MODEL 207
BF20.00-P-1001-02BA Cooling system Workshop replacement quantity Main circuit Liter ≈10, 3 ≈9, 6
Low temperature circuit Liter 1, 9 -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 276.8 in MODEL 212 ENGINE 276.9 in MODEL 212 (except 212.095/195)
BF20.00-P-1001-02BA Cooling system Workshop replacement quantity Main circuit Liter ≈10, 3 ≈9, 6
Low temperature circuit Liter 1, 9 -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 276.9 in MODEL 212.095/195 ENGINE 276 in MODEL 218
BF20.00-P-1001-02BA Cooling system Workshop replacement quantity Main circuit Liter ≈8, 4 ≈9, 6
Low temperature circuit Liter 2, 7 -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 274 in MODEL 207 ENGINE 274 in MODEL 212 (except 212.035)
BF20.00-P-1001-02CA Cooling system Workshop replacement quantity Main circuit Liter ≈8, 5 ≈8, 5
Low temperature circuit Liter - -
Antifreeze/water Up to -37_°C % 50/50 50/50
As of -38_°C % 55/45 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 274 in MODEL 212.035
BF20.00-P-1001-02CA Cooling system Workshop replacement quantity Main circuit Liter ≈8, 5
Low temperature circuit Liter ≈2, 0
Antifreeze/water Up to -37_°C % 50/50
As of -38_°C % 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 278 in MODEL 166 ENGINE 278 in MODEL 207
BF20.00-P-1001-02EA Cooling system Workshop replacement quantity Main circuit Liter ≈12, 9 ≈10, 9
Low-temperature circuit Liter - ≈2, 2
Antifreeze/water up to -37°C % 50/50 50/50
As of -38 °C % 55/45 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 278 in MODEL 212, 218
BF20.00-P-1001-02EA Cooling system Workshop replacement quantity Main circuit Liter ≈12, 3
Low-temperature circuit Liter ≈2, 5
Antifreeze/water up to -37°C % 50/50
As of -38 °C % 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 157 in MODEL 166 ENGINE 157 in MODEL 212
BF20.00-P-1001-02FA Cooling system Workshop replacement quantity Main circuit Liter ≈7, 5 -
Low temperature circuit Liter ≈1, 7 -
Antifreeze/water Up to -37°C % 50/50 50/50
As of -38 °C % 55/45 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 157 in MODEL 218
BF20.00-P-1001-02FA Cooling system Workshop replacement quantity Main circuit Liter -
Low temperature circuit Liter -
Antifreeze/water Up to -37°C % 50/50
As of -38 °C % 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 271.8 in MODEL 204, 207, 212 ENGINE 271.9
BF20.00-P-1001-02P Cooling system Workshop replacement quantity Liter ≈7, 5 ≈5, 6
Antifreeze/water Up to -37°C % 50/50 50/50
As of -38 °C % 55/45 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 156 in MODEL 212
BF20.00-P-1001-02U Cooling system Workshop replacement quantity Main circuit Liter 10, 0
Low temperature circuit Liter -
Antifreeze/water Up to -37_°C 50/50
As of -38_°C 55/45
Specifications for Operating Fluids Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specifications for Operating Fluids Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 642 in MODEL 166 ENGINE 642 in MODEL 207.323/423
BF20.00-P-1001-02W Cooling system Workshop replacement quantity Liter ≈11, 5 ≈12, 3
Antifreeze/water Up to -37 °C % 50/50 50/50
As of -38 °C % 55/45 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 642 in MODEL 207.326/426 ENGINE 642 in MODEL 212
BF20.00-P-1001-02W Cooling system Workshop replacement quantity Liter ≈10, 8 ≈10, 8
Antifreeze/water Up to -37 °C % 50/50 50/50
As of -38 °C % 55/45 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1 Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1 Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLING SYSTEM

Number Designation ENGINE 642 in MODEL 218
BF20.00-P-1001-02W Cooling system Workshop replacement quantity Liter ≈10, 8
Antifreeze/water Up to -37 °C % 50/50
As of -38 °C % 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Anticorrosion/antifreeze agents (Specification 325.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
Specification Premixed coolant (Specification 326.0). See https://bevo.mercedes-benz.com/index.php?language_id=1
COOLANT MIXING RATIO

Number Designation ENGINE ALL
BF20.00-P-1001-04A Coolant mixing ratio Antifreeze/water up to
-37°C		 50/50
Antifreeze/water up to
-45°C		 55/45
Specification Coolant (Specification 310.1). See https://bevo.mercedes-benz.com/index.php?language_id=1
scientia non olet · About LEMON Manuals
