Replace spark plugs - AP15.10-P-1580EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 157, 272, 273, 276, 278 in MODEL 212

ENGINE 157, 276, 278 in MODEL 218

ENGINE 272, 273, 276, 278 in MODEL 207

ENGINE 276.8 in MODEL 205

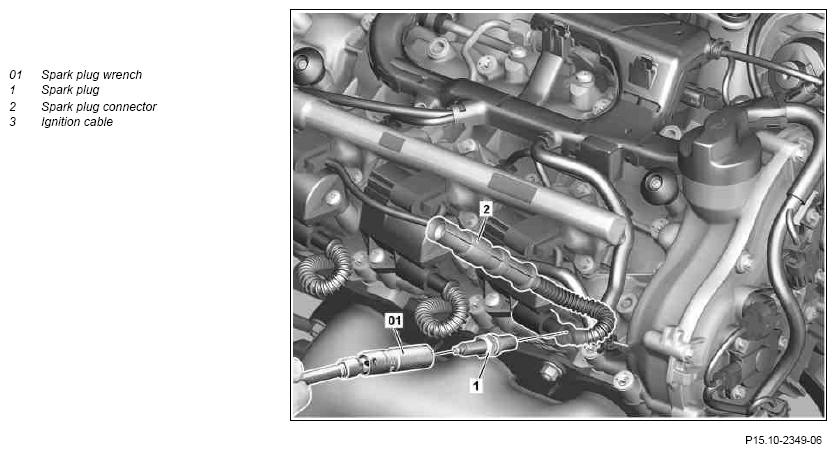

Shown on engine 272.983 in model 212.057

Fig 1: Spark Plugs
G09975038Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by contact with parts conducting high voltages. Do not touch parts which conduct high voltages. Persons who have electronic implants (e.g. cardiac pacemakers) may not perform any work on the ignition system. AS15.10-Z-0001-01A
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
NOTES Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
NOTES Notes on avoiding damage to ignition system   AH15.10-P-0002-01V
REMOVING Remove
1 Remove ignition coils ENGINE 157, 272 (except 272.983), 273, 276, 278 in MODEL 212
ENGINE 157, 276, 278 in MODEL 218
ENGINE 272 (except 272.982/984), 273, 276, 278 in MODEL 207
ENGINE 276.8 in MODEL 205
REFER TO TESTING & REPAIR ENGINE 157, 276, 278 in MODEL 212, 218 AR15.12-P-2003EL
REFER TO TESTING & REPAIR ENGINE 272 (except 272.982/984), 273 in MODEL 207 AR15.12-P-2003CV
REFER TO TESTING & REPAIR ENGINE 272 (except 272.983), 273 in MODEL 212 AR15.12-P-2003EW
REFER TO TESTING & REPAIR ENGINE 276, 278 in MODEL 207 AR15.12-P-2003FH
REFER TO TESTING & REPAIR ENGINE 276.8 in MODEL 205 AR15.12-P-2003MMV
2 Detach spark plug connectors (2) from spark plugs (1) ENGINE 272.982/984 in MODEL 207
ENGINE 272.983 in MODEL 212
REFER TO TESTING & REPAIR   AR15.12-P-1010-01CDE
SPECIAL TOOL Puller Fig 3
CLEANING Clean
3 Blow out any dirt residue in the spark-plug recesses using compressed air NOTES Openings through which contamination or foreign objects can be carried into the engine, its ancillary equipment or detachable parts must be immediately sealed off using suitable caps, stop plugs or a clean, lint-free rag. Damage can occur otherwise.
SPECIAL TOOL Record plug Fig 5
SPECIAL TOOL Set of protective covers Fig 2
REMOVING Remove
4 Remove spark plugs (1) from cylinder heads using spark plug wrench (01) SPECIAL TOOL ENGINE 157, 276, 278 in MODEL 212
ENGINE 157, 276, 278 in MODEL 218
ENGINE 276, 278 in MODEL 207
ENGINE 276.8 in MODEL 205
Spark plug wrench		 Fig 6
SPECIAL TOOL ENGINE 272, 273 in MODEL 207, 212
Spark plug wrench		 Fig 4
INSPECT Check
5 Check spark plug connector(2), ignition coil and ignition lines (3) for damage, deformation and crack formation If there are problems:
↓
Rectify problem subject to separate repair order.
INSTALLING Install
6 Screw new spark plugs (1) into cylinder heads using spark plug wrench (01) TORQUE SPECIFICATION Spark plug to cylinder head *BA15.10-P-1001-01C
SPECIAL TOOL ENGINE 157, 276, 278 in MODEL 212
ENGINE 157, 276, 278 in MODEL 218
ENGINE 276, 278 in MODEL 207
ENGINE 276.8 in MODEL 205
Spark plug wrench		 Fig 6
SPECIAL TOOL ENGINE 272, 273 in MODEL 207, 212
Spark plug wrench		 Fig 4
7 Install ignition coils ENGINE 157, 272 (except 272.983), 273, 276, 278 in MODEL 212
ENGINE 157, 276, 278 in MODEL 218
ENGINE 272 (except 272.982/984), 273, 276, 278 in MODEL 207
ENGINE 276.8 in MODEL 205
REFER TO TESTING & REPAIR ENGINE 157, 276, 278 in MODEL 212, 218 AR15.12-P-2003EL
REFER TO TESTING & REPAIR ENGINE 272 (except 272.982/984), 273 in MODEL 207 AR15.12-P-2003CV
REFER TO TESTING & REPAIR ENGINE 272 (except 272.983), 273 in MODEL 212 AR15.12-P-2003EW
REFER TO TESTING & REPAIR ENGINE 276, 278 in MODEL 207 AR15.12-P-2003FH
REFER TO TESTING & REPAIR ENGINE 276.8 in MODEL 205 AR15.12-P-2003MMV
8 Attach spark plug connectors (2) to spark plugs (1)
REFER TO TESTING & REPAIR ENGINE 272.982/984 in MODEL 207
ENGINE 272.983 in MODEL 212
IMPORTANT Check spark plug connectors (2), ignition coils and ignition lines (3) are correctly mounted and routed.		 AR15.12-P-1010-01CDE
SPARK PLUGS

Number Designation ENGINE 157 ENGINE 272
BA15.10-P-1001-01C Spark plug to cylinder head Nm 23 23
SPARK PLUGS

Number Designation ENGINE 273 ENGINE 276
BA15.10-P-1001-01C Spark plug to cylinder head Nm 23 23
SPARK PLUGS

Number Designation ENGINE 278
BA15.10-P-1001-01C Spark plug to cylinder head Nm 23
Fig 2: Identifying Set Of Protective Covers (001 589 01 91 00)
G09975039Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Puller (272 589 01 33 00)
G09975040Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Spark Plug Wrench (112 589 01 09 00)
G09975041Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Record Plug (129 589 00 91 00)
G09975042Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Spark Plug Wrench (278 589 00 09 00)
G09975043Courtesy of MERCEDES-BENZ USA
