Check brake lining thickness - AP42.10-P-4253A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 126, 156, 164, 166, 169, 171, 172, 176, 197, 201, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 240, 242, 245 (except 245.286), 246, 251

MODIFICATION NOTES

24.6.14 Brake Pad Strong   BE42.10-P-1001-05M
13.10.14 Brake lining MODEL 117 (except 117.352/952) BE42.10-P-1001-05Q
Fig 1: Brake Lining Thickness
G09976516Courtesy of MERCEDES-BENZ USA
Fig 2: Checking Brake Lining Thickness (1 Of 2)
G09976517Courtesy of MERCEDES-BENZ USA
Fig 3: Checking Brake Lining Thickness (2 Of 2)
G09976518DANGERDANGERNOTESNOTESIMPORTANTINSPECTIMPORTANTSPECIAL TOOLSPECIAL TOOLNOTESIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
NOTES Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
NOTES Notes on repairs to brake system   AH42.00-P-0003-01A
IMPORTANT Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
INSPECT Check
1 Check lining thickness (1) of brake linings MODEL 117, 126, 156, 164, 166, 169, 171, 172, 176, 197.3/4, 201, 204, 207, 209, 211, 212, 216, 218, 219, 221, 230, 231, 240, 242, 245 (except 245.286), 246, 251
MODEL 117, 164, 166, 169, 172, 176, 197.3/4, 204, 207, 209, 212, 216 (except 216.374/377/379), 218, 221 (except 221.074/077/174/177/179), 230, 231, 242, 245 (except 245.286), 246, 251

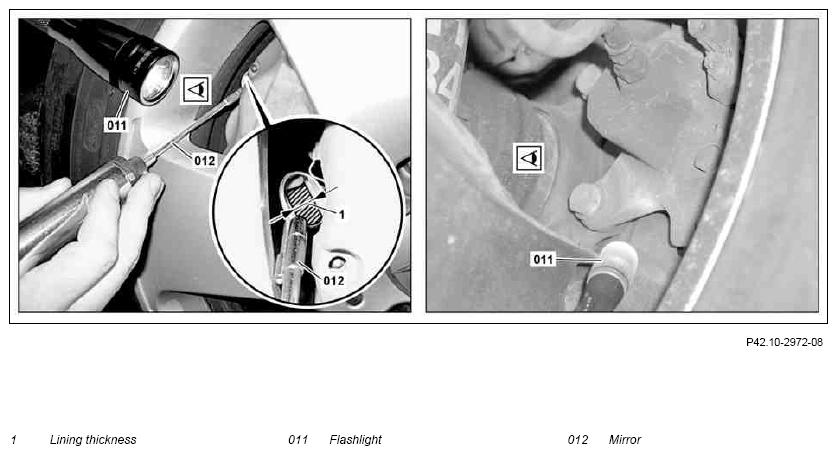

IMPORTANT If necessary, use flashlight (011) or mirror (012).		 AP42.10-P-4253-01GZ

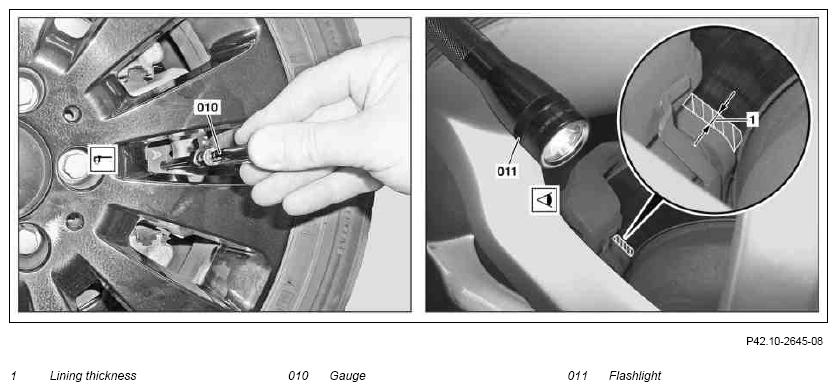

SPECIAL TOOL Brake pad test gauge Fig 4
SPECIAL TOOL Gauge adapter
If access not possible due to mounted complete wheels:
↓
Perform measurement on inner brake lining.
If measurement on brake lining is not possible:
↓
Subject to separate repair order, remove complete wheels and perform appropriate measurements.		 Fig 5
2 Determine likely remaining distance of brake linings   AP42.10-P-4253-03EW
NOTES
If the wear limit for the brake linings is reached, the brake linings must be replaced subject to separate repair order.
Otherwise the braking effect may be impaired and people, property and environmental damage may result!
IMPORTANT Per axle, the brake pad with the least lining thickness (1) is to be used for determining the likely remaining distance. In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is smaller than the next service interval, premature brake pad replacement should be recommended to the customer.
Model 117, 176 front axle brake lining thickness *BE42.10-P-1001-05Q
Model 164, 251 front axle brake lining thickness *BE42.10-P-1001-05J
Model 166, 172, 212 front axle brake lining thickness *BE42.10-P-1001-05P
Model 169, 171, 211, 245 (except 245.286) front axle brake lining thickness *BE42.10-P-1001-05H
Model 197 front axle brake lining thickness *BE42.10-P-1001-05O
Model 204, 207 front axle brake lining thickness *BE42.10-P-1001-05L
Model 216, 221 front axle brake lining thickness *BE42.10-P-1001-05K
Model 218 front axle brake lining thickness *BE42.10-P-1001-05R
Model 219, 240 front axle brake lining thickness *BE42.10-P-1001-05M
Model 230 front axle brake lining thickness *BE42.10-P-1001-05N
Model 231 front axle brake lining thickness *BE42.10-P-1001-05S
Model 242, 246 front axle brake lining thickness *BE42.10-P-1001-05T
Model 117, 156, 172, 176, 212, 218, 231, 242, 246 rear axle brake lining thickness *BE42.10-P-1001-15P
Model 164, 251 rear axle brake lining thickness *BE42.10-P-1001-15I
Model 166 rear axle brake lining thickness *BE42.10-P-1001-15Q
Model 169, 171, 211, 245 (except 245.286) rear axle brake lining thickness *BE42.10-P-1001-15G
Model 197 rear axle brake lining thickness *BE42.10-P-1001-15O
Model 204, 207 rear axle brake lining thickness *BE42.10-P-1001-15K
Model 216, 221 rear axle brake lining thickness *BE42.10-P-1001-15J
Model 219, 240 rear axle brake lining thickness *BE42.10-P-1001-15L
Model 230 rear axle brake lining thickness *BE42.10-P-1001-15N
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 169.006/007/031/032/033/306/307/331/332/333 MODEL 169.008/034/090/308/334
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 18, 7 19, 7
Wear limit (without pad backing plate) mm ≤2, 0 ≤2, 0
Wear limit (with pad backing plate) for maintenance service mm ≤11, 2 ≤11, 7
Wear limit (without pad backing plate) for maintenance service mm 5, 0 5, 5
Response of wear limit mm 3, 0 3, 0
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 245.207/208/233/234/286 MODEL 245.231/232
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 19, 7 18, 7
Wear limit (without pad backing plate) mm ≤2, 0 ≤2, 0
Wear limit (with pad backing plate) for maintenance service mm ≤11, 7 ≤11, 2
Wear limit (without pad backing plate) for maintenance service mm 5, 5 5, 0
Response of wear limit mm 3, 0 3, 0
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 171 with floating brake caliper MODEL 171 (except 171.473) with fixed brake caliper
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 20 17, 3
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm - -
Wear limit (without pad backing plate) for maintenance service mm - -
Response of wear limit mm ≈4 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 171.473 with fixed brake caliper MODEL 211.020/022/220/222, MODEL 211.054/254 with floating brake caliper
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 16 20, 1
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 10 11, 8
Wear limit (without pad backing plate) for maintenance service mm - 6, 3
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.080/082/087/280/282/287 MODEL 211.083/283
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 18 20
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 11 11
Wear limit (without pad backing plate) for maintenance service mm - -
Response of wear limit mm ≈2 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.084/089/092/284/289/292 with CODE 950 or with CODE 952 MODEL 211.084/089/092/284/289/292 except CODE 950 or except CODE 952
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 20 18, 5
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 12 11
Wear limit (without pad backing plate) for maintenance service mm 6 5, 5
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.090/290 MODEL 211.029
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 18, 5 17, 8
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 11, 8 10, 8
Wear limit (without pad backing plate) for maintenance service mm 5, 8 5
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.054/254 with fixed brake caliper, MODEL 211.608/620 with fixed brake caliper MODEL 211.004/006/016/023/042/061/206/216/24 2/261/606, MODEL 211.026/065 with floating brake caliper
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 16, 9 20
Wear limit (without pad backing plate) mm 1, 8 2
Wear limit (with pad backing plate) for maintenance service mm 10, 2 11
Wear limit (without pad backing plate) for maintenance service mm 5 5, 5
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.007/008/208, MODEL 211.041/241 with floating brake caliper, MODEL 211.052 except CODE 950, except CODE 951 or except CODE 952, MODEL 211.608 with floating brake caliper MODEL 211.026/065 with fixed brake caliper, MODEL 211.028/056/070/076/223/226/256/265/27 0/276/616
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 20, 1 17
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 11, 8 11
Wear limit (without pad backing plate) for maintenance service mm 6, 3 6, 5
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.041/241 with fixed brake caliper, MODEL 211.052 with CODE 950, with CODE 951, or with CODE 952, with fixed brake caliper, MODEL 211.072/272 with CODE 494, with CODE 498, with CODE 625, MODEL 211.072 with CODE 950, with CODE 951, with CODE 952 MODEL 211.072/272 except code 494, except CODE 498, except CODE 625, model 211.072 except CODE 950, except CODE 951, except CODE 952
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 16, 9 17, 8
Wear limit (without pad backing plate) mm 1, 8 2
Wear limit (with pad backing plate) for maintenance service mm 10, 2 10, 4
Wear limit (without pad backing plate) for maintenance service mm 5 5, 4
Response of wear limit mm ≈3 ≈3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 211.077/277
BE42.10-P-1001-05H Brake pad thickness New (with pad backing plate) mm 17, 55
Wear limit (without pad backing plate) mm 1, 2
Wear limit (with pad backing plate) for maintenance service mm 10, 9
Wear limit (without pad backing plate) for maintenance service mm 5, 4
Response of wear limit mm ≈3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 164 MODEL 251
BE42.10-P-1001-05J Brake lining thickness new (with pad backing plate) mm 19, 75 19, 75
new (without pad backing plate) mm 14 14
Wear limit (without pad backing plate) mm ≈2 ≈2
Wear limit (with pad backing plate) for maintenance service mm ≤11, 8 ≤11, 8
Wear limit (without pad backing plate) for maintenance service mm 5, 8 5, 8
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 216.371, MODEL 216.376 with CODE 494, 498, 625 MODEL 216.376 except CODE 494, 498, 625
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 17 16, 75
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 10 10, 1
Wear limit (without pad backing plate) for maintenance service mm 5 4, 6
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 216.377 MODEL 216.379
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 16 16
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 9, 5 9, 5
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4, 5
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 221.176 with CODE 494, 498, 625, except CODE Z07, Z19 MODEL 221.176 except CODE 494, 498, 625, except CODE Z07 with 8-piston brake caliper
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 17 16, 5
Wear limit (without pad backing plate) mm 2 1, 8
Wear limit (with pad backing plate) for maintenance service mm 10 9, 8
Wear limit (without pad backing plate) for maintenance service mm 5 4, 8
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 221.128 with CODE Z07 MODEL 221.080/180
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 16, 2 17
Wear limit (without pad backing plate) mm 1, 8 2
Wear limit (with pad backing plate) for maintenance service mm 9, 5 10
Wear limit (without pad backing plate) for maintenance service mm 5 5
Wear indicator activated mm - 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 221.022/056/070/071/122/156/170/171 MODEL 221.028/054/084/086/154/184/186, MODEL 221.128 except CODE Z07
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 17, 8 17
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 10, 8 10
Wear limit (without pad backing plate) for maintenance service mm 5 5
Wear indicator activated mm 2...3 -
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 221.077/177 MODEL 221.179
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 16 16
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 9, 5 9, 5
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4, 5
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 221.176 with CODE Z07, Z19
BE42.10-P-1001-05K Brake pad thickness new (with pad backing plate) mm 16, 2
Wear limit (without pad backing plate) mm 1, 8
Wear limit (with pad backing plate) for maintenance service mm 9, 5
Wear limit (without pad backing plate) for maintenance service mm 5
Wear indicator activated mm 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 204.07/27/37 MODEL 204.00/03/04/052/08 5/20/23/24/252/284/3 02/33/90/93/957/981/982/983/984/988/99, MODEL 204.054/081/082/254/282 except CODE 950/952/P53, MODEL 204.303/347/348/349 except CODE P84
BE42.10-P-1001-05L Brake pad Brake pad, new mm 9, 75 14, 0
Pad backing plate mm 6, 0 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator response (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 204.02/055/056/057/0 6/080/087/088/089/09/22/256/257/289/29/3 5/38/956/987, MODEL 204.054/081/082/254/282 with CODE 950, with CODE 952, with CODE P53, MODEL 204.303/347/348/349 with CODE P84 MODEL 207.373/473
BE42.10-P-1001-05L Brake pad Brake pad, new mm 12, 5 12, 5
Pad backing plate mm 5, 5 6, 0
Wear limit mm 2, 0 2, 0
Brake wear indicator response (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 207.301/302/347/348/401/402/447/448 with CODE 950/P96, MODEL 207.303/304/32/336/3 5/361/367/388/403/40 4/42/436/45/46 MODEL 207.301/302/347/348/401/402/447/448 except CODE 950/P96, MODEL 207.334/434
BE42.10-P-1001-05L Brake pad Brake pad, new mm 12, 8 14, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator response (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 219.322/354/356/357/375, MODEL 219.372 with CODE 494/498/625 MODEL 219.372 except CODE 494/498/625
BE42.10-P-1001-05M Brake lining thickness new (with pad backing plate) mm 17, 3 17, 8
Wear limit (without pad backing plate) mm 2, 5 2, 0
Wear limit (with pad backing plate) for maintenance service mm 8, 1 7, 8
Activation of wear indicator mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 219.376 MODEL 219.377
BE42.10-P-1001-05M Brake lining thickness new (with pad backing plate) mm 17, 2 16, 55
Wear limit (without pad backing plate) mm 1, 8 0, 7
Wear limit (with pad backing plate) for maintenance service mm 7, 5 7, 5
Activation of wear indicator mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 240
BE42.10-P-1001-05M Brake lining thickness new (with pad backing plate) mm 18, 2
Wear limit (without pad backing plate) mm 2, 5
Wear limit (with pad backing plate) for maintenance service mm 11, 2
Activation of wear indicator mm 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 230.454/456/458 with CODE 952 (Sports package) MODEL 230.471 with CODE 951 (Sports package USA) without CODE 494 (US version) MODEL 230.454/456/458 without CODE 952 (Sports package) MODEL 230.471 with CODE 494 (US version) MODEL 230.475
BE42.10-P-1001-05N Brake pad thickness new (without pad backing plate) mm 12 11, 7
Pad backing plate mm 5, 8 5, 6
Wear limit mm 2 2
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 230.470 MODEL 230.479 with CODE P99 (Special model "AMG Black Series") without CODE 951 (Sports package USA) MODEL 230.476/477 MODEL 230.479 with CODE 951 (Sports package USA)
BE42.10-P-1001-05N Brake pad thickness new (without pad backing plate) mm 9, 8 10, 8
Pad backing plate mm 6, 8 7
Wear limit mm 0, 7 0, 7
Wear indicator activated mm 1...2 1...2
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 230.467 MODEL 230.472/474
BE42.10-P-1001-05N Brake pad thickness new (without pad backing plate) mm 12, 7 12, 2
Pad backing plate mm 5 5
Wear limit mm 2 2
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 197 without CODE B07 (Ceramic brake system) MODEL 197 with CODE B07 (Ceramic brake system)
BE42.10-P-1001-05O Brake shoe thickness New mm 16, 55 17, 7
Pad backing plate mm 6, 8 6, 7
Wear limit mm 0, 7 1, 5
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 166.003/004/023/024/055/057/058 except CODE 494, MODEL 166.006/056/064/075 except CODE 494/P31/Z04/Z05, MODEL 166.062/823/824/856 except CODE 494/P31 MODEL 166.003/004/023/024/055/057/058/062 with CODE 494, MODEL 166.823/824/856 with CODE 494, except CODE P31
BE42.10-P-1001-05P Brake pad Brake pad, new mm 13, 80 12, 00
Pad backing plate mm 6, 50 6, 50
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 166.006/056/064/075 with CODE Z04/Z05, MODEL 166.056/062/064/075/823/824/856 with CODE P31 except CODE 494, MODEL 166.063/864/865 with CODE Z04/Z05 except CODE 494, MODEL 166.073/872/873 except CODE 494, MODEL 166.871 MODEL 166.056/823/824/856 with CODE 494+P31, MODEL 166.063/073/864/865/872/873 with CODE 494
BE42.10-P-1001-05P Brake pad Brake pad, new mm 13, 80 12, 00
Pad backing plate mm 4, 50 4, 50
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 166.074/874 MODEL 172.403/404/434/438/457, MODEL 172.431 with CODE 950/951/952, MODEL 172.447 except CODE 494
BE42.10-P-1001-05P Brake pad Brake pad, new mm 9, 75 12, 50
Pad backing plate mm 6, 00 5, 50
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 172.475 MODEL 172.431 except CODE 950/951/952, MODEL 172.447 with CODE 494, MODEL 172.448
BE42.10-P-1001-05P Brake pad Brake pad, new mm 11, 30 14, 00
Pad backing plate mm 5, 50 5, 50
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 212.065/067/165/167/168/265/267 except CODE 460/494, MODEL 212.072/090/272 except CODE 494, MODEL 212.093/094/095/293/294 with CODE 950/P96, MODEL 212.061/073/091/099/195/261/273/291/299 MODEL 212.001/002/004/005/006/034/036/040/041/048/052/201/202/20 5/206/234/248 with CODE 950/P96, MODEL 212.003 except CODE 1U9, MODEL 212.065/067/165/167/168/265/267 with CODE 460/494, MODEL 212.093/094/095/293/294 except CODE 950/P96, MODEL 212.02/047/053/054/055/056/057/059/08/097/098/13/147/148/1 54/162/203/204/22/2 36/247/25/28/297/298
BE42.10-P-1001-05P Brake pad Brake pad, new mm 11, 30 12, 80
Pad backing plate mm 5, 00 5, 50
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 212.001/002/004/005/006/034/036/040/041/048/052/201/202/205/206/234/248 except CODE 950/P96, MODEL 212.003 with CODE 1U9, MODEL 212.035 MODEL 212.074/075/076/077/092/274/275/276/27 7/292 except CODE B07
BE42.10-P-1001-05P Brake pad Brake pad, new mm 14, 00 9, 75
Pad backing plate mm 5, 50 6, 00
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 212.074/075/076/077/092/274/275/276/277/292 with CODE B07 MODEL 212.072/090/272 with CODE 494
BE42.10-P-1001-05P Brake pad Brake pad, new mm 10, 50 12, 00
Pad backing plate mm 6, 00 5, 00
Wear limit mm 2, 00 2, 00
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 117 (except 117.352/952) MODEL 117.352/952
BE42.10-P-1001-05Q Brake pad Brake pad, new mm 12, 91 10, 1
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2 2
Wear indicator activated (if available) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE SHOE

Number Designation MODEL 176 (except 176.052) MODEL 176.052
BE42.10-P-1001-05Q Brake pad Brake pad, new mm 12, 91 10, 1
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2 2
Wear indicator activated (if available) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 218.374/375/376/392/974/975/976/992 except CODE B07 MODEL 218.374/375/376/392/974/975/976/992 with CODE B07
BE42.10-P-1001-05R Brake shoe Brake pad, new mm 9, 75 10, 50
Pad backing plate mm 6, 0 6, 0
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 218.373/391/973/991 MODEL 218.362/961/965/967/968, MODEL 218.323/326/393/394/923/926/959/993/99 4 with CODE 950/P96, MODEL 218.361/365/367/368 except CODE 494, MODEL 218.359 with CODE P96/950 except 494
BE42.10-P-1001-05R Brake shoe Brake pad, new mm 11, 38 11, 52
Pad backing plate mm 5, 5 5, 0
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE PAD

Number Designation MODEL 218.301/303/304/336/355/397/901/903/90 4/936/997, MODEL 218.361/365/367/368 with CODE 494, MODEL 218.323/326/393/394/923/926/959/993/994 except CODE 950/P96, MODEL 218.359 with CODE 950+494, except CODE P96
BE42.10-P-1001-05R Brake shoe Brake pad, new mm 12, 50
Pad backing plate mm 5, 5
Wear limit mm 2, 0
Brake wear indicator activated (if installed) mm 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 231.457 except CODE 950/P88, MODEL 231.473 except CODE 950/951/P88/U28 MODEL 231.457 with CODE 950/P88, MODEL 231.473 with CODE 950/951/P88/U28
BE42.10-P-1001-05S Brake pad Brake pad, new mm 12, 0 11, 5
Pad backing plate mm 5, 0 5, 5
Wear limit mm 2, 0 2, 0
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 231.465 except CODE 950/951/P88/U28 MODEL 231.465 with CODE 950/951/P88/U28
BE42.10-P-1001-05S Brake pad Brake pad, new mm 11, 5 11, 5
Pad backing plate mm 5, 5 5, 0
Wear limit mm 2, 0 2, 0
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 231.474/479 except CODE B07 MODEL 231.474/479 with CODE B07
BE42.10-P-1001-05S Brake pad Brake pad, new mm 9, 75 10, 5
Pad backing plate mm 6, 0 6, 0
Wear limit mm 2, 0 2, 0
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR FRONT BRAKE LINING

Number Designation MODEL 242.848/890 MODEL 246.200/201/202/203/205/207/208/211/212/241/242/243/244/246/247
BE42.10-P-1001-05T Brake lining thickness Brake lining, new mm 12, 91 12, 91
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2 2
Brake lining wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 169 MODEL 171
BE42.10-P-1001-15G Brake pad thickness New (with pad backing plate) mm 14, 4 14, 5
Wear limit (without pad backing plate) mm ≤2, 0 2
Wear limit (with pad backing plate) for maintenance service mm ≤8, 5 9
Wear limit (without pad backing plate) for maintenance service mm 3, 5 -
Wear indicator activated mm - 2
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 211.004/006/016/023/026/028/042/056/061/065/070/080/082/083/087/206/216/223/226/242/256/261/265/270/280/282/283/287/606/616 MODEL 211.007/008/020/022/041/052/054/072/084/089/090/092/208/220/222/241/254/272/284/289/290/292/608/620
BE42.10-P-1001-15G Brake pad thickness New (with pad backing plate) mm 15, 5 16
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 11 9, 5
Wear limit (without pad backing plate) for maintenance service mm 5, 5 4, 5
Wear indicator activated mm 2 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 211.026/065 with CODE 491, with CODE 498, with CODE 625 MODEL 211.029
BE42.10-P-1001-15G Brake pad thickness New (with pad backing plate) mm 16 16
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 11, 5 9, 9
Wear limit (without pad backing plate) for maintenance service mm - 4, 2
Wear indicator activated mm 3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 211.076/276 MODEL 211.077/277
BE42.10-P-1001-15G Brake pad thickness New (with pad backing plate) mm 16 15
Wear limit (without pad backing plate) mm 2 1, 8
Wear limit (with pad backing plate) for maintenance service mm 10 8, 9
Wear limit (without pad backing plate) for maintenance service mm 5, 5 4, 4
Wear indicator activated mm ≈2 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 245
BE42.10-P-1001-15G Brake pad thickness New (with pad backing plate) mm 14, 4
Wear limit (without pad backing plate) mm ≤2, 0
Wear limit (with pad backing plate) for maintenance service mm ≤8, 5
Wear limit (without pad backing plate) for maintenance service mm 3, 5
Wear indicator activated mm -
CHECK VALUES FOR REAR BRAKE LINING

Number Designation MODEL 164 (except 164.177) MODEL 164.177
BE42.10-P-1001-15I Brake lining thickness new (with pad backing plate) mm 17 16, 5
new (without pad backing plate) mm 12 11
Wear limit (without pad backing plate) mm ≤2 ≤2
Wear limit (with pad backing plate) for maintenance service mm ≤10 ≤10
Wear limit (without pad backing plate) for maintenance service mm 5 4, 5
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE LINING

Number Designation MODEL 251.077/177 MODEL 251 (except 251.077/177)
BE42.10-P-1001-15I Brake lining thickness new (with pad backing plate) mm 16, 5 17
new (without pad backing plate) mm 11 12
Wear limit (without pad backing plate) mm ≤2 ≤2
Wear limit (with pad backing plate) for maintenance service mm ≤10 ≤10
Wear limit (without pad backing plate) for maintenance service mm 4, 5 5
Wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 216.371, MODEL 216.376 with floating brake caliper MODEL 216.376 with fixed brake caliper
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 16 15
Wear limit (without pad backing plate) mm 2 2, 5
Wear limit (with pad backing plate) for maintenance service mm 9, 5 8, 5
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4
Wear indicator activated (if available) mm - -
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 216.377 MODEL 216.379
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 16, 5 16, 5
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 10 10
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4, 5
Wear indicator activated (if available) mm - -
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 221.022/056/070/071/122/156/170/171 MODEL 221.028/054/084/086/154/184/186, MODEL 221.128 except CODE Z07
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 16 16, 5
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 9, 9 10
Wear limit (without pad backing plate) for maintenance service mm 4, 2 4, 5
Wear indicator activated (if available) mm 2...3 -
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 221.080/180 MODEL 221.077/177
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 16 16, 5
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 9, 5 10
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4, 5
Wear indicator activated (if available) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 221.128/176 with CODE Z07, Z19 MODEL 221.176 except CODE Z07, Z19, with fixed brake caliper
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 14 15
Wear limit (without pad backing plate) mm 1, 8 2, 5
Wear limit (with pad backing plate) for maintenance service mm 8, 3 8, 5
Wear limit (without pad backing plate) for maintenance service mm 3, 8 4
Wear indicator activated (if available) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 221.176 except CODE Z07, Z19, with floating brake caliper MODEL 221.179
BE42.10-P-1001-15J Brake pad thickness new (with pad backing plate) mm 16 16, 5
Wear limit (without pad backing plate) mm 2 2
Wear limit (with pad backing plate) for maintenance service mm 9, 5 10
Wear limit (without pad backing plate) for maintenance service mm 4, 5 4, 5
Wear indicator activated (if available) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 204.00/02/03/04/05/0 6/08/09/20/22/23/24/2 5/28/29/30/33/34/35/38/90/93/95/98/99 MODEL 204.077/277, MODEL 204.377 except CODE P98
BE42.10-P-1001-15K Brake pad Brake pad, new mm 12 9, 1
Pad backing plate mm 5, 0 4, 5
Wear limit mm 2 2
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 204.377 with CODE P98 MODEL 207
BE42.10-P-1001-15K Brake pad Brake pad, new mm 9, 1 12
Pad backing plate mm 5, 5 5, 0
Wear limit mm 2 2
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 219.322/354/356/357/372/375 MODEL 219.376
BE42.10-P-1001-15L Brake lining thickness new (with pad backing plate) mm 16, 0 15, 7
Wear limit (without pad backing plate) mm 2, 0 2, 5
Wear limit (with pad backing plate) for maintenance service mm 7, 0 7, 7
Activation of wear indicator (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 219.377 MODEL 240
BE42.10-P-1001-15L Brake lining thickness new (with pad backing plate) mm 14, 7 18, 2
Wear limit (without pad backing plate) mm 1, 4 2, 5
Wear limit (with pad backing plate) for maintenance service mm 7, 0 11, 2
Activation of wear indicator (if installed) mm 2...3 3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 230.470/472 MODEL 230.479 with CODE P99 (Special model "AMG Black Series") without CODE 951 (Sports package USA) MODEL 230.454/456/458/467/471/474/475
BE42.10-P-1001-15N Brake pad thickness new (without pad backing plate) mm 9, 1 10, 2
Pad backing plate mm 5, 6 5, 8
Wear limit mm 2 2
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 230.476/477 MODEL 230.479 with CODE 951 (Sports package USA)
BE42.10-P-1001-15N Brake pad thickness new (without pad backing plate) mm 10, 5
Pad backing plate mm 5, 6
Wear limit mm 2
Wear indicator activated mm 2...3
CHECK VALUES FOR REAR BRAKE SHOE

Number Designation MODEL 197 without CODE B07 (Ceramic brake system) MODEL 197 with CODE B07 (Ceramic brake system)
BE42.10-P-1001-15O Brake shoe thickness new (without pad backing plate) mm 17, 9 15, 4
Pad backing plate mm 6, 9 6, 3
Wear limit mm 1, 6 1, 2
Wear indicator activated mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 117 MODEL 156
BE42.10-P-1001-15P Brake pad Brake pad, new mm 12, 0 12, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 172.403/404/431/434/438/447/448/457/475 MODEL 176
BE42.10-P-1001-15P Brake pad Brake pad, new mm 12, 0 12, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 212 except AMG MODEL 212 AMG
BE42.10-P-1001-15P Brake pad Brake pad, new mm 11, 0 9, 1
Pad backing plate mm 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 218 AMG MODEL 218 except AMG
BE42.10-P-1001-15P Brake pad Brake pad, new mm 9, 1 11, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 231.474/479 except CODE B07 MODEL 231.457/465/473, MODEL 231.474/479 with CODE B07
BE42.10-P-1001-15P Brake pad Brake pad, new mm 11, 0 12, 0
Pad backing plate mm 6, 0 6, 0
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE PAD

Number Designation MODEL 242 MODEL 246
BE42.10-P-1001-15P Brake pad Brake pad, new mm 12, 0 12, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2, 0 2, 0
Brake wear indicator activated (if installed) mm 2...3 2...3
CHECK VALUES FOR REAR BRAKE SHOE

Number Designation MODEL 166.003/004/023/024/055/057/058/062/064/073/823/824/856/864/865/871/872/873, MODEL 166.006/075 with CODE Z04/Z05, MODEL 166.006 with CODE P31 MODEL 166.006 except CODE P31/Z04/Z05, MODEL 166.074/874, MODEL 166.075 except CODE Z04/Z05
BE42.10-P-1001-15Q Brake shoe Brake pad, new mm 12, 0 10, 0
Pad backing plate mm 5, 5 5, 5
Wear limit mm 2 2
Wear indicator activated (if installed) mm 2...3 2...3
Fig 4: Identifying Brake Pad Test Gauge (211 589 06 23 00)
G09976519Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Gauge Adapter (164 589 10 23 00)
G09976520Courtesy of MERCEDES-BENZ USA
scientia non olet · About LEMON Manuals
