Check seat belts and seat belt buckles for external damage and operation - AP91.40-P-9150EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

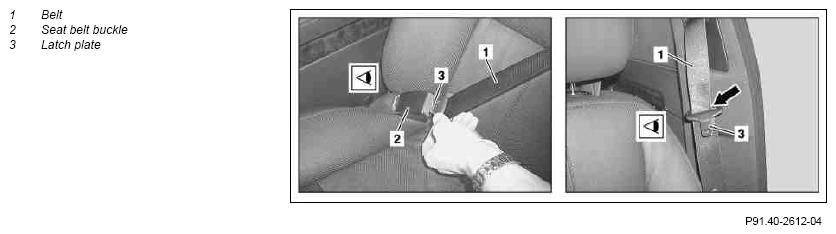

Fig 1: Checking Seat Belts And Seat Belt Buckles

Courtesy of MERCEDES-BENZ USA

	Checking
	If a customer refuses replacement of a damaged seat belt or seat belt buckle (2), an appropriate remark must be made on the repair order
1	Pull belt (1) all the way out and check for any signs of damage	In the event of cut-through fibers, chafe marks or other damage, replace seat belt subject to separate repair order:
	Remove/install seat belt with emergency tensioning retractor Remove/install rear seat belts	Front seat Outer rear seat:	AR91.40-P-0630CW
		Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system Center rear seat:	AR91.40-P-0681EW
	Remove, replace and install rear center seat belt	Vehicles with code (287) Through-loading feature	AR91.40-P-0683CW
	Remove, replace and install rear center seat belt	Vehicles without code (287) Through-loading feature, Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system	AR91.40-P-0683CWA
2	Check belt (1) for twisting (arrow) and remove twists (arrow)	If necessary check whether the seat belt is twisted behind the trim; to do this, remove/install seat belt subject to separate repair order:
	Remove/install seat belt with emergency tensioning retractor Remove/install rear seat belts	Front seat Outer rear seat:	AR91.40-P-0630CW
		Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system Center rear seat:	AR91.40-P-0681EW
	Remove, replace and install rear center seat belt	Vehicles with code (287) Through-loading feature	AR91.40-P-0683CW
	Remove, replace and install rear center seat belt	Vehicles without code (287) Through-loading feature, Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system	AR91.40-P-0683CWA
3	Check blocking function of seat belt retractor by pulling out the belt (1) abruptly	In the event of complaint replace seat belt subject to separate repair order:
	Remove/install seat belt with emergency tensioning retractor Remove/install rear seat belts	Front seat Outer rear seat:	AR91.40-P-0630CW
		Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system Center rear seat:	AR91.40-P-0681EW
	Remove, replace and install rear center seat belt	Vehicles with code (287) Through-loading feature	AR91.40-P-0683CW
	Remove, replace and install rear center seat belt	Vehicles without code (287) Through-loading feature, Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system	AR91.40-P-0683CWA
4	Check seat belt buckle (2) for damage and make sure that belt tab (3) engages correctly	In the event of complaint replace seat belt buckle subject to separate repair order:
	Remove/install seat belt buckle (front seat)	Front seat Rear seat	AR91.40-P-1515CW
	Remove/install rear seat belt buckle	Vehicles without code (224) Design individual rear seat system Vehicles with code (224) Design individual rear seat system	AR91.40-P-1516EW
