Windshield wipers, windshield washer system and headlamp cleaning system - function check - AP82.30-P-8252EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212, 218

Illustration shows model 212.002

Fig 1: Windshield Wipers And Windshield Washer System - Shown On Model 212.002

Courtesy of MERCEDES-BENZ USA

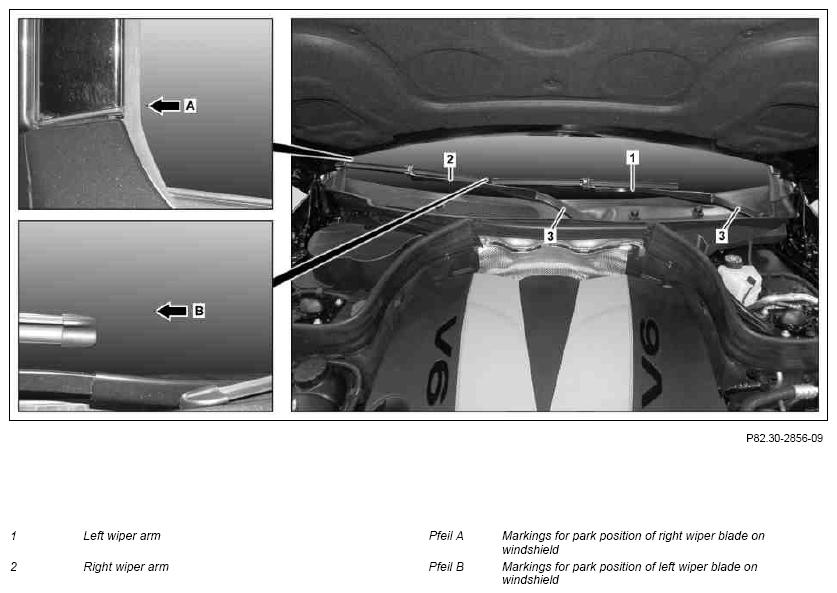

Park position of wiper arms, shown on model 204.9

Fig 2: Wiper Arms - Shown On Model 204.9

Courtesy of MERCEDES-BENZ USA

	Check
	Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin.	Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children.	AS82.35-Z-0001-01A
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
1	Close engine hood	MODEL 207, 212, 218
		MODEL 207, 212 MODEL 207, 212 with CODE U60 (Pedestrian protection) The clamping lever must be fitted and locked.	AR88.40-P-1000EW
2	Close liftgate, doors, sliding roof and side windows
3	Switch on ignition

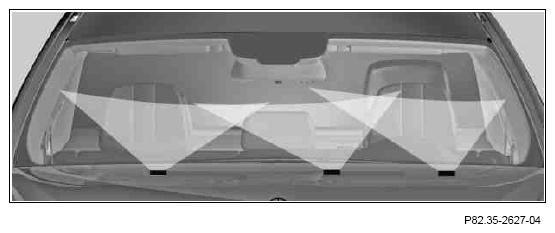

4	Check function of spray nozzles for windshield washer system on windshield and the setting		AP82.35-P-8252-01EW
		The spray jet must hit the windshield in the marked area. Correct the adjustment if necessary.
		Adjustment tool	Fig 3
		For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice.
5	Check function of spray nozzles for windshield washer system on rear window and the setting	MODEL 212.2, 218.9 Spray jet must spread out across the center of the rear window. Correct setting if necessary. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order. For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice.
6	Check park position of wiper blades	The ends of the wiper blades should be positioned on the "A" and "B" markings (see arrows) on the windshield and may be offset downward or upward by a maximum of 10 mm. In the event of any deviation to the park position: ↓ Check and adjust wiper arms subject to separate repair order.
7	Check setting of wiper arms on windshield	The wiper blades must not come into contact with the A-pillar or cowl. The body or wiper mechanism will otherwise be damaged. Spray water over the windshield washer system on the windshield and switch on wiper at highest setting. If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
		Service Information Bulletin: Wiper blades MODEL 212	SI82.30-P-0011B
8	Check setting of wiper arm on rear window	MODEL 212.2, 218.9 Wiper blade must not contact the rear-end door. Otherwise the rear-end door or the wiper mechanism may be damaged. Spray water over the windshield washer system on the rear window and switch on wiper at highest setting. If there are problems: ↓ Determine and rectify cause, subject to separate repair order.
9	Switch on low beam	Vehicles with xenon headlamps or with code (600) Headlamp cleaning system.
10	Check spray nozzles of headlamp cleaning system for proper operation and setting	Vehicles with xenon headlamps or with code (600) Headlamp cleaning system. Repeatedly operate windshield washer system for windshield until the headlamp cleaning system is activated. The spray jet must impact in the light source area on the headlamp lens. Correct setting if necessary. For clogged up spray nozzle: ↓ Clean spray nozzle using suitable needle and/or blow out with compressed air from inside out or replace spray nozzle subject to separate invoice. For spray nozzles that cannot be adjusted and with a deviating spray pattern: ↓ Replace spray nozzle subject to separate repair order.
11	Switch off ignition and low beams
12	Correct the fluid level in the windshield washer system reservoir		AP82.35-P-8210EW
		Only for service A with Plus package

Fig 3: Identifying Adjustment Tool (001 589 02 16 00)

Courtesy of MERCEDES-BENZ USA
