Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 172, 207, 212, 218, 231

Shown on model 212

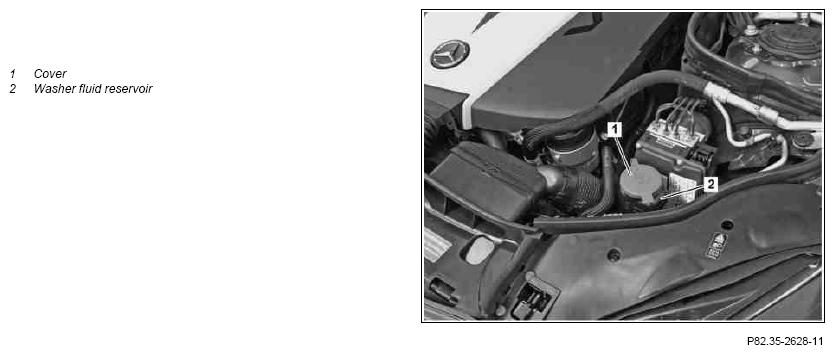

Fig 1: Washer Fluid Reservoir And Cover - Shown On Model 212
G09977551Courtesy of MERCEDES-BENZ USA
DANGER Risk of fire  and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning  caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury  or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. AS82.35-Z-0001-01A
  Preparatory activity
1 Open engine hood and raise to vertical position MODEL 172, 207, 212, 218, 231
REFER TO TESTING & REPAIR   MODEL 207, 212
with CODE U60 (Active Bonnet (Pedestrian protection))
IMPORTANT MODEL 207, 212
with CODE U60 (Active Bonnet (Pedestrian protection))
To move engine hood to upright position:
Detach left and right clamping levers at the upper left and right hinges.		 AR88.40-P-1000EW
  Check/correct
2 Remove cap (1) and check fluid level in washer fluid reservoir (2); correct if necessary
REFER TO CAPACITIES & SPECIFICATIONS Windshield washer fluid concentrate   Windshield washer fluid concentrate. MB 371.0.
    IMPORTANT Use summer/winter cleaner depending on season.
IMPORTANT Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze.
    FLUID SPECIFICATION *BF82.35-P-1001-01D
    MODEL 172
    FLUID SPECIFICATION Model 207, 212, 218, 231 *BF82.35-P-1001-01G
  Finishing activity
3 Close washer fluid reservoir (2) with cover (1)
4 Close engine hood MODEL 172, 207, 212, 218, 231
REFER TO TESTING & REPAIR   MODEL 207, 212
with CODE U60 (Active Bonnet (Pedestrian protection))		 AR88.40-P-1000EW
    IMPORTANT
MODEL 207, 212
with CODE U60 (Active Bonnet (Pedestrian protection))
Before closing the engine hood:
Mount left and right clamping levers at the upper left and right hinges. Otherwise, correct operation of the pedestrian protection function can no longer be guaranteed.
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM

Number Designation MODEL 172
BF82.35-P-1001-01D Windshield washer fluid Filling capacity Liter 3, 5
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number Designation MODEL 207 except CODE 600/615/616/875 MODEL 207 with CODE 600/615/616/875
BF82.35-P-1001-01G Windshield washer fluid Filling capacity Liter 4, 0 6, 0
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number Designation MODEL 212.0 except CODE 600/875 MODEL 212.0 with CODE 600/875, MODEL 212.1/2
BF82.35-P-1001-01G Windshield washer fluid Filling capacity Liter 4, 0 6, 0
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM

Number Designation MODEL 218 MODEL 231
BF82.35-P-1001-01G Windshield washer fluid Filling capacity Liter 6, 0 5, 3
