Check warning and function indicator lamps in instrument cluster - AP54.30-P-5451EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212

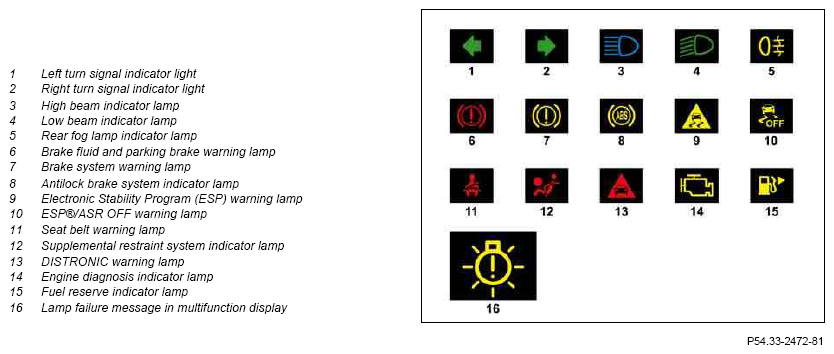

Fig 1: Warning And Function Indicator Lamps

Courtesy of MERCEDES-BENZ USA

	Check
1	Switch off engine and switch on ignition	Engine hood, trunk lid or liftgate and all doors closed.
2	Operate parking brake
3	Check warning lamps (6, 7, 9, 10, 11, 13, 15) and indicator lamps (8, 12, 14) for proper operation	In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order
4	Switch on low beams manually	The low beams indicator lamp (4) must light up and there must not be a lamp failure message in the multifunction display (16). In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order
5	Switch on high beam	The high beams indicator lamp (3) must light up and there must not be a lamp failure message in the multifunction display (16). In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order
6	Switch on rear fog lamp	The rear fog light indicator lamp (5) must light up and there must not be a lamp failure message in the multifunction display (16). In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order
7	Engage reverse gear and apply service brake	No lamp failure message in the multifunction display (16).
8	Switch off ignition and exterior lights
9	Switch on hazard warning flashers	The left and right turn signal light indicator lamps (1, 2) flash in unison. In the event of complaints: ↓ Determine and rectify cause, subject to separate repair order
10	Switch off hazard warning flashers
