Clean water drain - AP82.35-P-8232A

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 166, 204, 207, 212, 218, 231

Illustration shows model 204

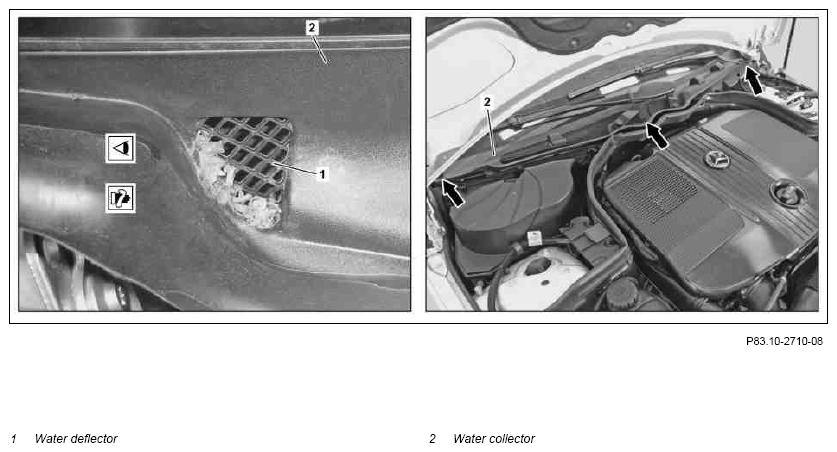

Fig 1: Water Deflector And Water Collector - Shown On Model 204
G09977552Courtesy of MERCEDES-BENZ USA
CLEANING Clean
1 Open engine hood MODEL 166, 204, 207, 212, 218, 231
REFER TO TESTING & REPAIR   MODEL 204.3, 207, 212 AR88.40-P-1000EW
2 Check left, center and right water deflector (1) in water collector (2) for dirt; clean if necessary IMPORTANT Remove dirt using wet/dry vacuum cleaner.
Wet and dry vacuum cleaner
3 Close engine hood MODEL 166, 204, 207, 212, 218, 231
REFER TO TESTING & REPAIR   MODEL 204.3, 207, 212
IMPORTANT MODEL 204.3, 207, 212
with CODE U60 (Active Bonnet (Pedestrian protection))
The clamping lever must be fitted and locked.		 AR88.40-P-1000EW
