Check visible area of poly-V belt for wear - AP13.22-P-1352EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156, 157, 271, 272, 273, 274, 276, 278, 642, 651 in MODEL 212
ENGINE 157, 274, 276, 278, 642, 651 in MODEL 218
ENGINE 157, 276, 277, 278, 279, 642, 651 in MODEL 222
ENGINE 157, 276, 278, 279 in MODEL 231
ENGINE 157, 276, 278, 642, 651 in MODEL 166
ENGINE 157, 278, 279 in MODEL 217
ENGINE 271, 272, 273, 274, 276, 278, 642, 651 in MODEL 207
| Preparatory activity | |||
| 1 | Open engine hood and raise to vertical position | MODEL 166, 207, 212, 217, 218, 222, 231 | |
| MODEL 207, 212 with CODE U60 (Pedestrian protection) To move engine hood to upright position: Detach left and right clamping levers at the upper left and right hinges. |
AR88.40-P-1000EW | ||
| Check | |||

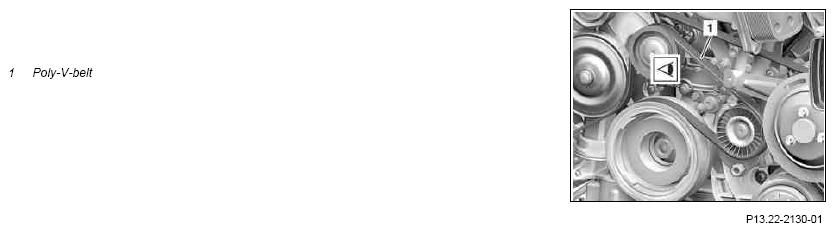

| 2 | Check poly-V belt (1) for wear and damage at visible points and compare with damage profiles | AP13.22-P-1351-01A | |
| If wear or damage is present: ↓ Replace the poly-V belt (1), subject to a separate repair order. |
|||
| Remove | |||
| 3.1 | Remove bottom engine compartment paneling | MODEL 207, 212, 218 with gasoline engine; MODEL 217, 222, 231 |
|
| MODEL 207, 212, 218 | AR61.20-P-1105EW | ||
| MODEL 217, 222 | AR61.20-P-1105LF | ||
| MODEL 231 | AR61.20-P-1105RK | ||
| 3.2 | Remove bottom sections of soundproofing | Model 207, 212, 218 with diesel engine | |
| AR94.30-P-5300EW | |||
| 3.3 | Remove center underfloor paneling | MODEL 166 | |
| AR61.30-P-1001GQ | |||
| Check | |||
| 4 | Check poly-V-belt (1) for wear and damage at visible points when vehicle is raised, and compare with damage profiles | AP13.22-P-1351-01A | |
| If wear or damage is present: ↓ Replace the poly-V belt (1), subject to a separate repair order. |
|||
| Install | |||
| 5.1 | Install lower engine compartment paneling | MODEL 207, 212, 218 with gasoline engine; MODEL 217, 222, 231 |
|
| MODEL 207, 212, 218 | AR61.20-P-1105EW | ||
| MODEL 217, 222 | AR61.20-P-1105LF | ||
| MODEL 231 | AR61.20-P-1105RK | ||
| 5.2 | Install bottom section of soundproofing | Model 207, 212, 218 with diesel engine | |
| AR94.30-P-5300EW | |||
| 5.3 | Install center underfloor paneling | MODEL 166 | |
| AR61.30-P-1001GQ | |||
| 6 | Close engine hood | MODEL 166, 207, 212, 217, 218, 222, 231 | |
| MODEL 207, 212 with CODE U60 (Pedestrian protection) To ensure correct operation of pedestrian protection. |
AR88.40-P-1000EW |
