Panoramic sliding roof - clean and lubricate guide mechanism - AP77.20-P-7732EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166, 207.3, 212 with CODE (413) Panoramic sliding roof
Shown on model 212.0
| Clean | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |

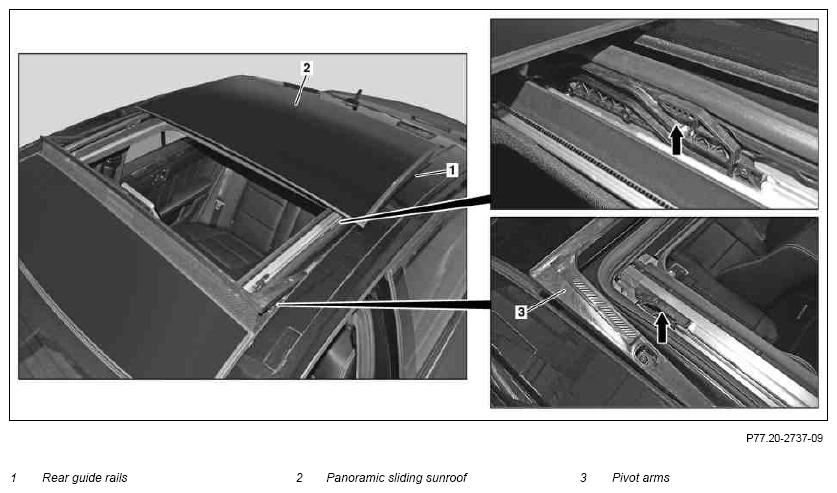

| 1 | Drip three drops of special sliding roof antifriction agent into each rear guide rail (1) | Special antifriction agent | *BR00.45-Z-1055-06A |
| 2 | Switch on ignition and open panoramic sliding roof (2) | ||
| 3 | Use rag to clean crosshatched area of wind deflector pivot arms (3) | ||
| 4 | Clean the upper and lower guide rails (arrows) over the entire length with rags | ||
| 5 | Apply thin coating of antifriction paste to crosshatched area of wind deflector pivot arms (3) | Lubricant paste | *BR00.45-Z-1004-06A |
| 6 | Coat contact surfaces of guide rails (arrows) over the entire length with a thin coating of lubricating paste | Lubricant paste | *BR00.45-Z-1004-06A |
| 7 | Perform function test on panoramic sliding roof (2) | ||
| 8 | Remove excess lubricant | ||
| 9 | Close panoramic sliding roof (2) and switch off ignition |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
| BR00.45-Z-1055-06A | Special sliding compound | A 000 989 36 60 |
