Replace spark plugs - AP15.10-P-1580CMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 156 in MODEL 204, 212
Shows model 204.077
| Remove/install | |||
| Risk of death due to contact with high-voltage conductive parts | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) should never perform any work on the ignition system | AS15.10-Z-0001-01A | |
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage to ignition system | AH15.10-P-0002-01D | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| 1 | Switch off ignition | ||
| 2 | Open engine hood | Model 212 Model 204 |
AR88.40-P-1000EW |
| 3 | Remove air filter housing | AR09.10-P-1150CMG | |
| 4 | Remove ignition coils | AR15.12-P-2003CMG | |

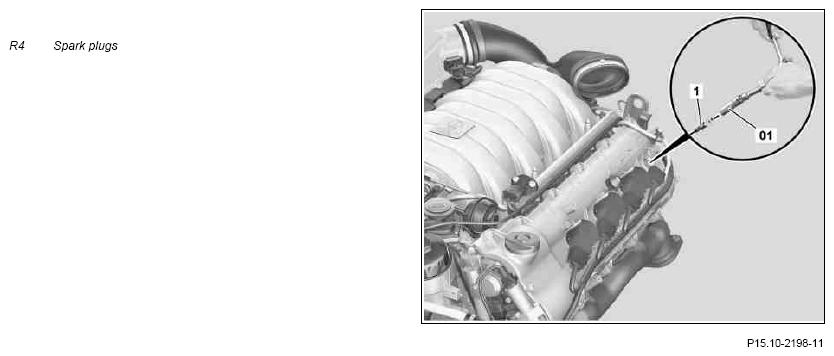

| 5 | Remove spark plugs (R4) using spark plug socket wrench | Spark plug socket wrench | |
| *BA15.10-P-1001-01H | |||
| 6 | Install in the reverse order |
SPARK PLUGS
| Number | Designation | ENGINE 156, 159 | |
|---|---|---|---|
| BA15.10-P-1001-01H | Spark plug on cylinder head | Nm | 22 |
