Notes on coolant level - AH20.00-P-1142-01CW

Engine 133, 270, 607, 651 in model 117

Engine 133, 270, 607, 651 in model 156

Engine 133, 270, 607, 651 in model 176

Engine 156, 157, 271, 272, 273, 276, 278, 642, 651 in model 212

Engine 156, 271, 272, 276, 642, 646, 651 in model 204

Engine 157, 276, 278 in model 292

Engine 157, 276, 278, 642, 651 in model 166

Engine 157, 276, 278, 642, 651 in model 218

Engine 159 in model 197

Engine 270, 607, 651 in model 246

Engine 270, 780 in model 242

Engine 271, 272, 273, 276, 278, 642, 651 in model 207

MODEL 166, 204, 207, 212, 218, 292

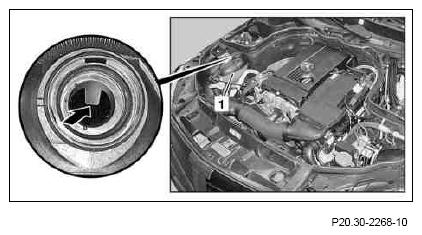

When the engine is cold, the coolant level must be level with the marking (arrow) in the coolant expansion reservoir (1).

When the coolant is warm: Approx. 1 cm above this mark.

MODEL 117, 156, 176, 197, 242, 246

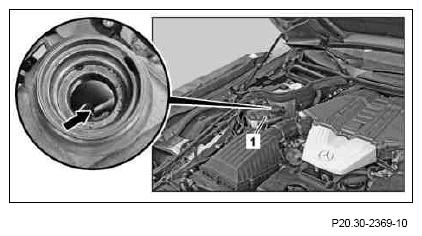

When the engine is cold, the coolant level must reach up to the upper edge of the web (arrow) in the coolant expansion reservoir (1).

When coolant is warm: Approx. 1 cm above the upper edge.
