Remove/Install Dashboard - AR68.10-P-1000RG
Model 190
MODIFICATION NOTES
| 05.07.2019 | Specialist note added. | Operation step 22 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Notes on working in engine compartment | AH60.00-P-0042-01RG | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Disconnect ground line from battery. | AR54.10-P-0003RG | |
| 000 588 13 98 00 Cover | WS98.00-P-0017B | ||
| 3 | Remove left and right door sills. | AR68.30-P-4100RG | |
| 4 | Unclip cover on left and right side in footwell. | ||
| 5 | Remove bottom paneling for instrument panel (1) on driver side. | AR68.10-P-1501RQ | |
| 6 | Remove trim at bottom for instrument panel (1) on front passenger side. | AR68.10-P-1520RG | |
| 7 | Remove glove compartment. | AR68.10-P-1400RG | |
| 8 | Remove cover from center console. | AR68.20-P-2350RG | |
| 9 | Remove side covers on center console. | AR68.20-P-2355RG | |
| 10 | Remove center instrument panel cover (1). | AR68.10-P-3430RG | |
| 11 | Remove the midrange speaker in the instrument panel (1). | AR82.62-P-7833RG | |
| 12 | Remove radio display. | AR82.60-P-7722RG | |
| 13 | Remove steering wheel. | AR46.10-P-0100RG | |
| 14 | Remove steering column module. | AR54.25-P-2802RG | |
| 15 | Remove instrument cluster. | AR54.30-P-6015RG | |
| 16 | Remove COMAND controller unit. | AR82.85-P-1100RG | |
| 17 | Unclip left tweeter in instrument panel (1) and right tweeter in instrument panel (1) and release and disconnect electrical connectors. | ||

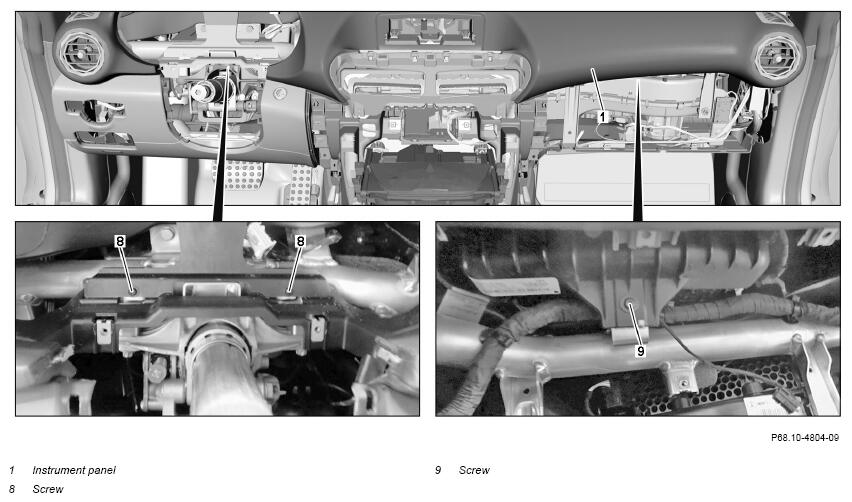

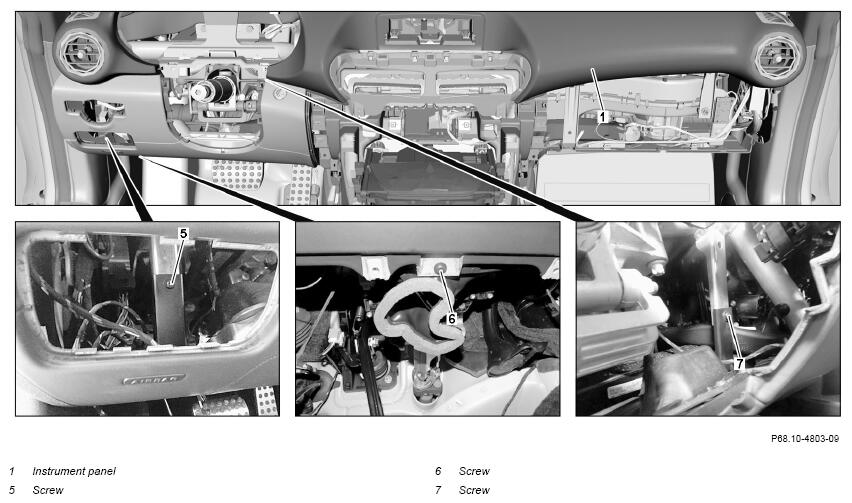

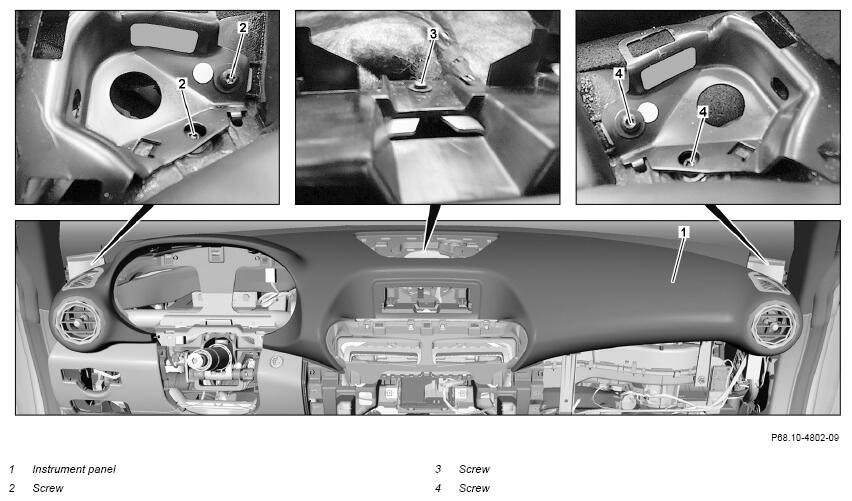

| 18 | Unscrew screws (2, 3, 4, 5, 6, 7, 8, 9). | ||
| 19 | Lift instrument panel (1) toward front until electrical connectors on air outlet temperature sensor left side air vent can be released and disconnected. | AR83.30-P-8081RG | |
| 20 | Lift instrument panel (1) toward front until the electrical connector on the air outlet temperature sensor side air vent can be released. | AR83.30-P-8082RG | |
| 21 | Release and disconnect electrical connector on the air outlet temperature sensor side air vent. | ||
| 22 | Remove instrument panel (1). | Ensure the correct seat and routing of the wiring harness from the active engine mount control unit on the A-pillar on the front passenger side. Otherwise damage may occur. |
|
| 23 | Install in the reverse order. | ||
| Check | |||
| 24 | Carry out operational check. |
