Remove/Install Left Side Air Vent Outlet Temperature Sensor - AR83.30-P-8081RG

Model 190

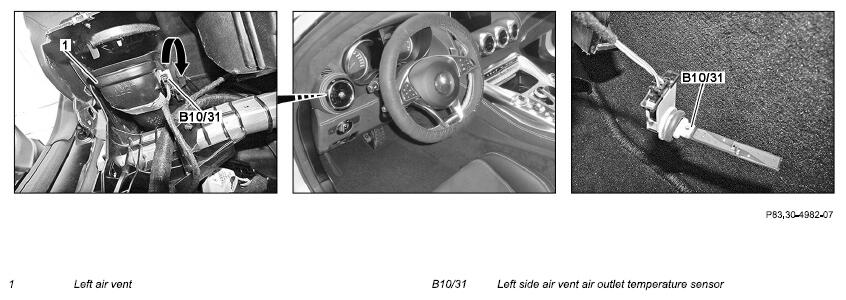

Fig 1: Left Side Air Vent Outlet Temperature Sensor Components Location - Model 190

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range
2	Remove dashboard		AR68.10-P-1000RG
3	Disconnect electrical connector from left side air vent air outlet temperature sensor (B10/31)
4	Turn left side air vent air outlet temperature sensor (B10/31) 90° clockwise (arrow) and pull out of air vent (1)
5	Install in the reverse order
