Remove/Install Right Cover Below Instrument Panel - AR68.10-P-1520RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move front passenger seat to end position toward rear

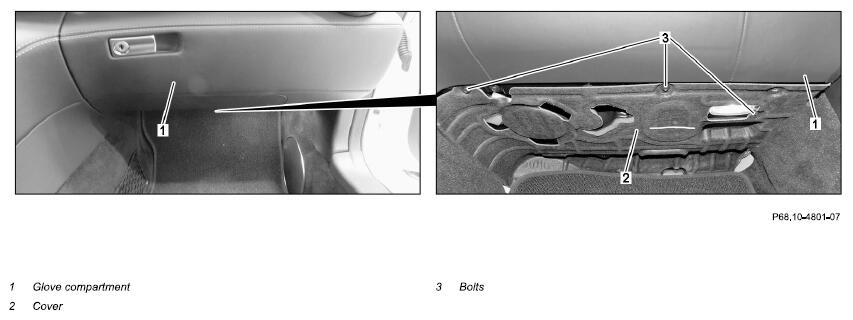

2	Unscrew bolts (3) and remove cover (2)	Make sure that the cover (2) is seated correctly.
3	Install in the reverse order
