Remove/Install Bottom Paneling For Dashboard On Driver Side - AR68.10-P-1501RQ
Model 190, 197
| Remove/install | |||

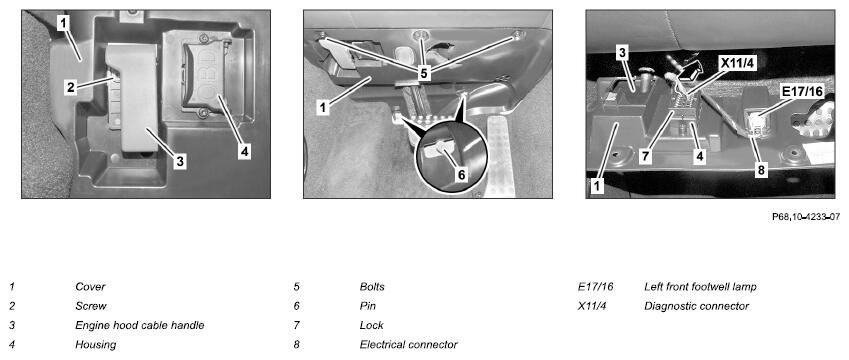

| 1 | Move driver seat towards the rear | ||
| 2 | Unscrew bolt (2) from engine hood cable handle (3) | ||
| 3 | Unscrew bolts (5) and lower paneling (1) | ||
| 4 | Guide engine hood cable handle (3) through opening in paneling (1) | ||
| 5 | Release lock (7) on diagnostic connector (X11/4) by moving in direction of arrow and remove diagnostic coupling (X11/4) from housing (4) | ||
| 6 | Disconnect electrical connector (8) from left front footwell lamp (E17/16) | ||
| 7 | Remove paneling (1) out of footwell | ||
| 8 | Install in the reverse order |
