Remove/Install Side Cover On Center Console - AR68.20-P-2355RG

Model 190

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove cover from center console.		AR68.20-P-2350RG

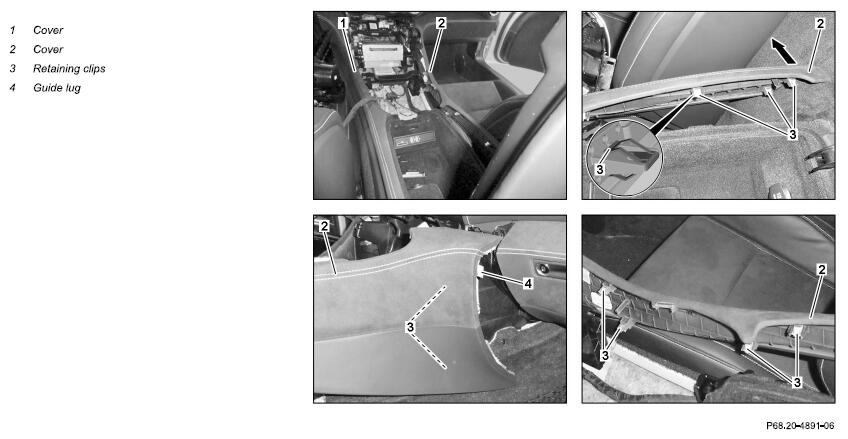

2	Unclip cover (1, 2) from the rear toward the front from the retaining clips (3) in the direction of the arrow.
3	Remove cover (1, 2) from the instrument panel.	: Extend cover (1, 2) toward the rear out of the instrument panel. Ensure that the guide lug (4) is seated correctly in the instrument panel.
4	Disconnect electrical connector from the start/stop button.	When removing the cover (1, 2) from the driver's side.
5	Remove cover (1, 2).
6	Install in the reverse order.
