Remove/Install Glove Compartment - AR68.10-P-1400RG
Model 190
MODIFICATION NOTES
| 29.05.2019 | Remove telephone control unit, added. | Operation step 6 |
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Disconnect ground line from battery. | AR54.10-P-0003RG | |
| 3 | Remove door sill. | AR68.30-P-4100RG | |
| 4 | Remove side cover from center console. | AR68.20-P-2355RG | |

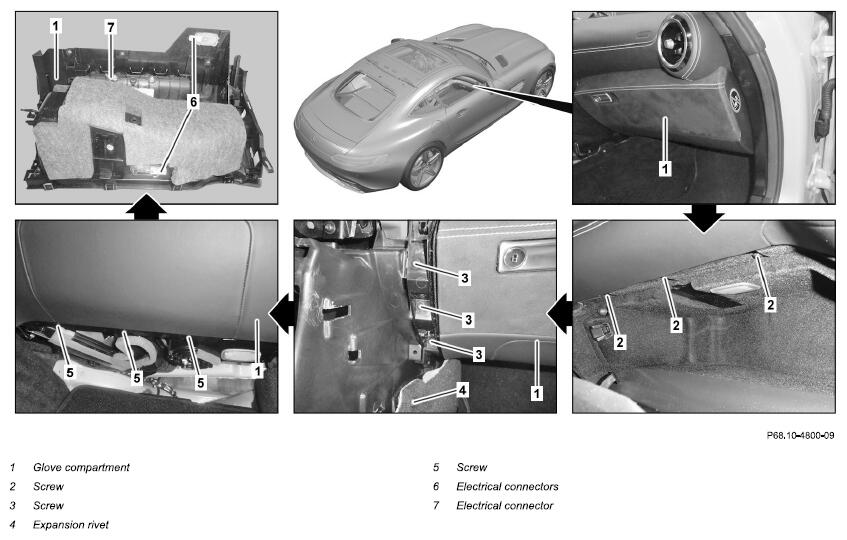

| 5 | Open glove compartment (1). | ||
| 6 | Remove telephone control unit. | Model 190 with code 380 (Car telephony package) | AR82.70-P-7380RG |
| 7 | Remove screw/bolts (2). | ||
| 8 | Remove screw/bolts (3). | ||
| 9 | Remove expansion rivet (4). | ||
| 10 | Remove screws (5) below the glove compartment (1)- | ||
| 11 | Pull out glove compartment (1) until the electrical connectors (6, 7) are accessible. | ||
| 12 | Disconnect electrical connectors (6). | ||
| 13 | Disconnect electrical connector (7) of the front passenger knee airbag. | Fig 1 | |
| 14 | Remove glove compartment (1). | ||
| 15 | Remove front passenger knee airbag. | When replacing glove compartment (1). | AR91.60-P-0100RG |
| 16 | Install in the reverse order. |
