Remove/Install Right Side Air Vent Outlet Temperature Sensor - AR83.30-P-8082RG
Model 190
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range | ||
| 2 | Remove glove compartment | AR68.10-P-1400RG | |
| 3 | Disconnect electrical connector from right side air vent air outlet temperature sensor (B10/32) | ||

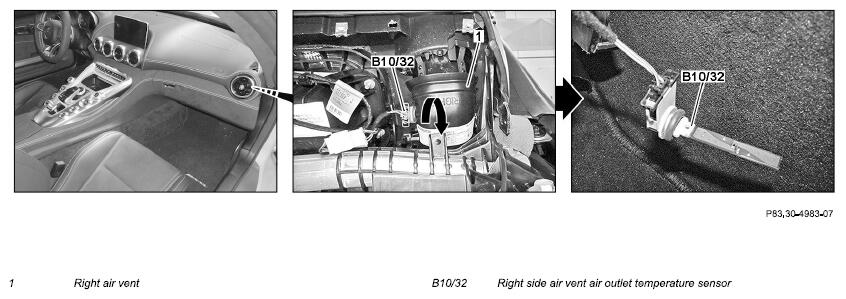

| 4 | Turn light side air vent air outlet temperature sensor (B10/32) by 90° counterclockwise (arrow) and pull out of air vent (1) | ||
| 5 | Install in the reverse order |
