Remove/Install Loudspeaker In Instrument Panel - AR82.62-P-7833RG
Model 190
Shown With Code 811 (Advanced Sound System)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition, remove transmitter key if necessary and place transmitter key outside of KEYLESS-GO transmission range | ||
| 2 | Remove center dashboard cover (1) | AR68.10-P-3430RG | |

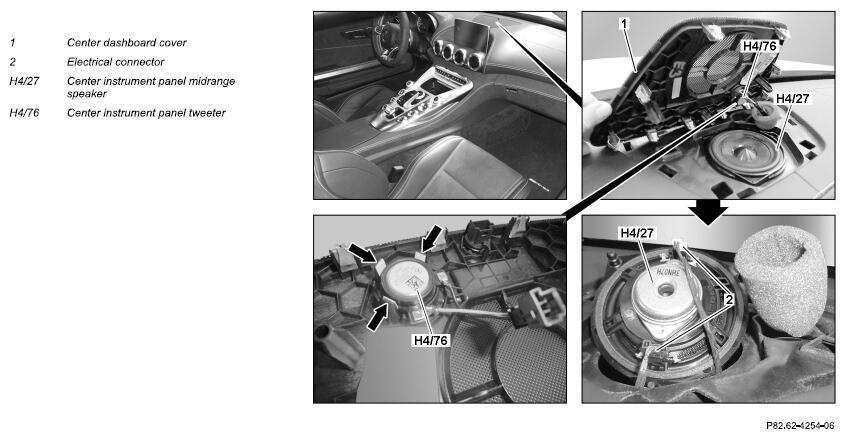

| Fig 1 | |||
| 3 | Pull center instrument panel midrange speaker (H4/27) upwards out of the instrument panel until the electric connectors (2) are accessible | ||
| 4 | Disconnect electrical connectors (2) and remove center instrument panel midrange speaker (H4/27) | ||
| 5 | Release catch hook (arrow) and remove center instrument panel tweeter (H4/76) | MODEL 190 with CODE 811 (Advanced sound system) | |
| 6 | Install in the reverse order |
