Disconnect/Connect Battery Ground Line - AR54.10-P-0003RG
Model 190
MODIFICATION NOTES
| 12.03.2021 | Remove cover (3). | Operation step 3. |
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Topical note | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | |
| Topical note | Notes on battery | AH54.10-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Disconnect, connect | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | All electrical consumers must be switched off. Otherwise, they may be damaged when the ground line (1) is disconnected/connected. |
|
| 2 | Open hood. | ||

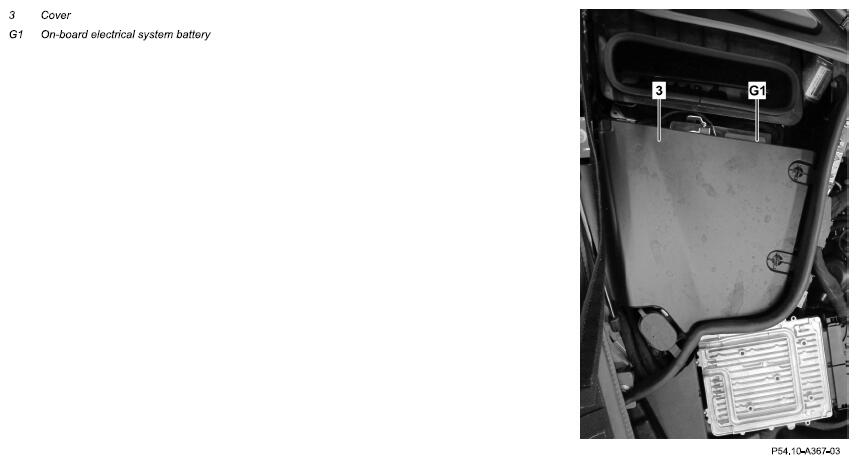

| 3 | Remove cover (3). | ||

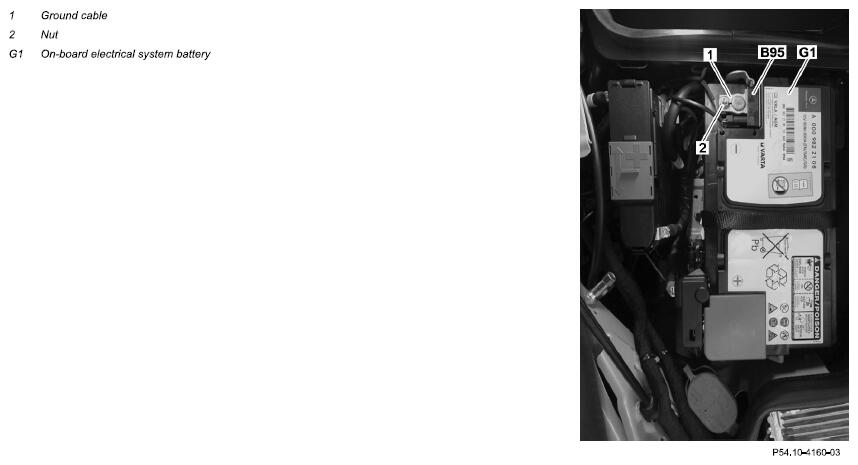

| 4 | Loosen nut (2). | *BA54.10-P-1005-01G | |
| 5 | Remove ground line (1) from negative terminal of on-board electrical system battery (G1). | ||
| 6 | Connect in reverse order. |
BATTERY
| Number | Designation | Model 190 | |
|---|---|---|---|
| BA54.10-P-1005-01G | Nut, charging cable to negative terminal/positive terminal of on-board electrical system battery | Nm | 6 |
