Remove/Install Steering Wheel - AR46.10-P-0100RG

Model 190

Courtesy of MERCEDES-BENZ USA

	Remove/install

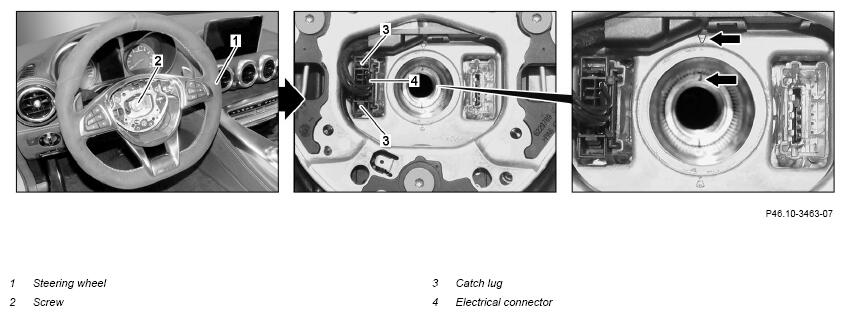

1	Turn steering wheel (1) to center position	Front wheels in straight-ahead position.
2	Remove driver airbag on the steering wheel	Replace bolt (2).	AR91.60-P-0660EL
		Bolt, steering wheel to steering shaft	*BA46.10-P-1001-02A
3	Unlock catch tabs (3) and disconnect electrical connection (4)	Do not damage catch tabs (3)! Otherwise, the electrical connection (4) will no longer lock.
		Ensure that the electrical connection (4) engages properly.
4	Remove steering wheel (1)	Ensure correct assignment of the markings (arrows) on the steering wheel and on the steering shaft.
5	Install in the reverse order
	Check
6	Conduct a road test	Perform operation steps 7 to 9 in this case.
7	Check turn signal cancellation	When the steering wheel is displaced by more than 1 tooth, correct cancellation of the turn signal is no longer guaranteed.
8	Check driver airbag indicator lamp	On full steering angle in both directions, the SRS (Supplemental Restraint System) indicator lamp must not light up.
9	Check position of the steering wheel	If the steering wheel is not straight, displace it by max. 1 tooth.

STEERING WHEEL

Number	Designation		MODEL 190
BA46.10-P-1001-02A	Bolt, steering wheel to steering shaft	Nm	80
