Remove/Install Cover On Center Console - AR68.20-P-2350RG

Model 190

Courtesy of MERCEDES-BENZ USA

Shown on model 190.3 up to model year 2019

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Open stowage compartment below the armrest.
3	Unclip cover (2) with long wedge (3).	Long wedge	Fig 1
4	Remove screws/bolts (4).
5.1	Unclip cover (5) with long wedge (3).	Model 190.3 Long wedge	Fig 1
5.2	Remove upper control panel control unit.	Model 190.4	AR54.21-P-1262RGR
6	Pull center console cover (1) in the direction of the arrow and release and disconnect electrical connector (6).
7	Tilt cover center console (1) to the side and release and disconnect electrical connectors (7).	Place center console cover (1) on a suitable cloth. Otherwise the center console cover (1) can be damaged. The number of electrical connectors (7) can vary depending on the equipment installed.
8	Remove center console cover (1).
9	Install in the reverse order.

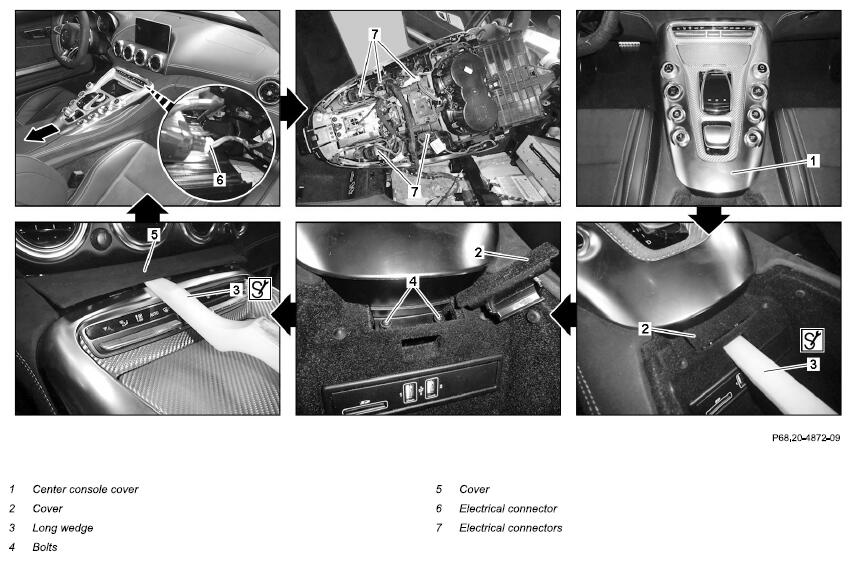

Fig 1: Identifying Long Wedge (115 589 03 59 00)
