Body Panels Location Index

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

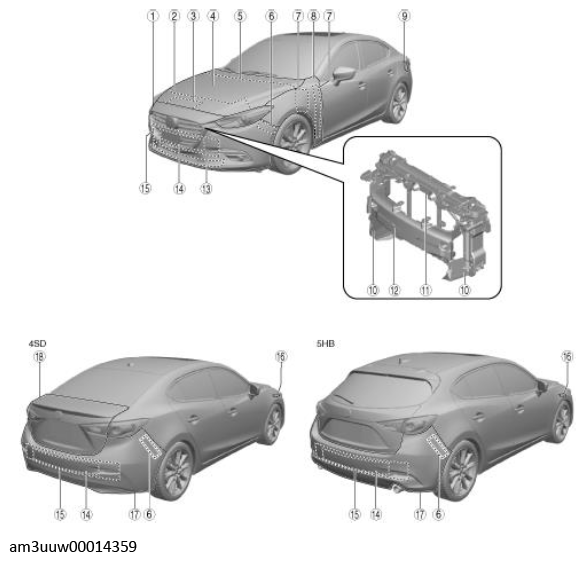

Fig 1: Body Panels Parts Location

G11447511

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front bumper (See FRONT BUMPER REMOVAL ) (See FRONT BUMPER INSTALLATION .) (See FRONT BUMPER DISASSEMBLY/ASSEMBLY .)
2	Shroud upper member (See SHROUD UPPER MEMBER REMOVAL/INSTALLATION .)
3	Set plate (See SET PLATE REMOVAL/INSTALLATION .)
4	Hood (See HOOD REMOVAL/INSTALLATION .) (See HOOD DISASSEMBLY/ASSEMBLY .) (See HOOD ADJUSTMENT .)
5	Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
6	Bumper slider (See BUMPER SLIDER REMOVAL/INSTALLATION .)
7	Front fender insulator (See FRONT FENDER INSULATOR No. 1 REMOVAL/INSTALLATION .) (See FRONT FENDER INSULATOR No. 2 REMOVAL .) (See FRONT FENDER INSULATOR No. 2 INSTALLATION .)
8	Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
9	Fuel-filler lid (See FUEL-FILLER LID REMOVAL/INSTALLATION .) (See FUEL-FILLER LID ADJUSTMENT .)
10	Seal plate (See SEAL PLATE REMOVAL/INSTALLATION .)
11	Shroud panel (See SHROUD PANEL REMOVAL/INSTALLATION .)
12	Intake air guide (See INTAKE AIR GUIDE REMOVAL/INSTALLATION .)
13	Bumper stiffener lower (See BUMPER STIFFENER LOWER REMOVAL/INSTALLATION .)
14	Energy-absorbing form (if equipped) (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION .)
15	Bumper reinforcement (See FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION .) (See REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION .)
16	Front fender stay (See FRONT FENDER STAY REMOVAL/INSTALLATION .)
17	Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION .) (See REAR BUMPER DISASSEMBLY/ASSEMBLY .)
18	Trunk lid (See TRUNK LID REMOVAL/INSTALLATION .) (See TRUNK LID ADJUSTMENT .) (See BALANCE SPRING REMOVAL/INSTALLATION .)
