Set Plate Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove fasteners shown in the figure.

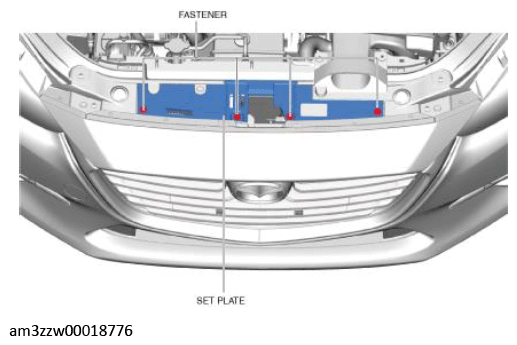

Fig 1: Removing Set Plate Fasteners
Courtesy of MAZDA MOTORS CORP.
Pull the set plate in the direction of the arrow and remove it while detaching guides.

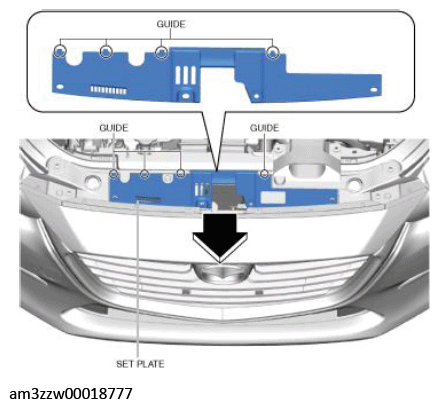

Fig 2: Pulling Set Plate
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
