Hood Disassembly/Assembly
WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disassemble in the order indicated in the table.

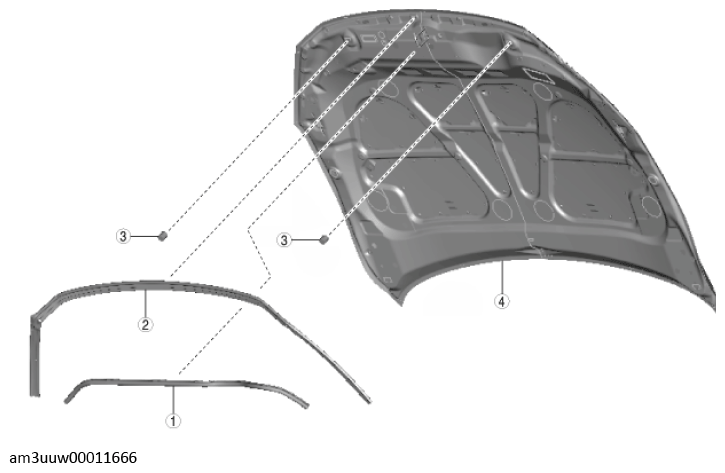

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Shroud seal weatherstrip |
| 2 |
Parting seal weatherstrip |
| 3 |
Stop rubber |
| 4 |
Hood component |
- Assemble in the reverse order of disassembly.
