Front Bumper Disassembly/Assembly

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Front fog lights (With front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
2. Front turn light (See FRONT TURN LIGHT REMOVAL/INSTALLATION .)
3. Front turn light short cord (See FRONT TURN LIGHT SHORT CORD REMOVAL/INSTALLATION .)

Disassemble in the order indicated in the table.

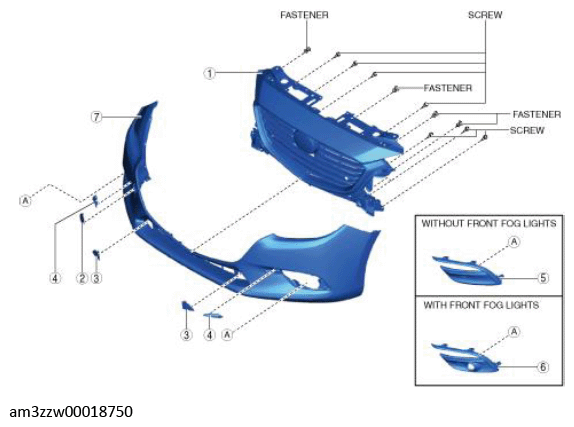

Fig 1: Front Bumper Disassembly

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
2	Towing hook cover
3	Front bumper cover
4	Flole cover
5	Flole cover (Without front fog lights)
6	Front fog light bezel (With front fog lights)
7	Front bumper face

Assemble in the reverse order of disassembly.
If a front fog light is removed from the front bumper, perform the front fog light aiming. (With front fog lights) (See FRONT FOG LIGHT AIMING .)
