Front Bumper Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wiring harness clips.

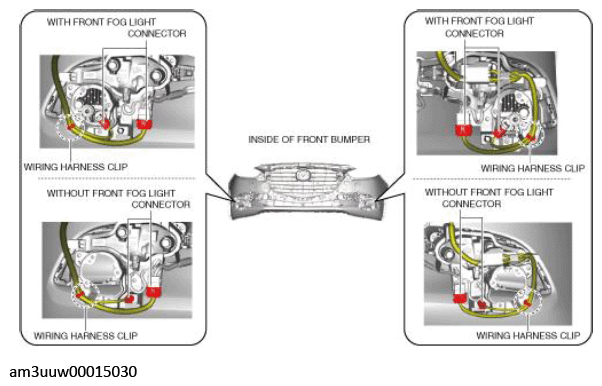

    Fig 1: Installing Wiring Harness Clips Of Front Bumper
    G11447534Courtesy of MAZDA MOTORS CORP.
  2. Connect the connectors.
  3. Press in the front bumper in the direction of the arrow shown in the figure and install the guide (RH).

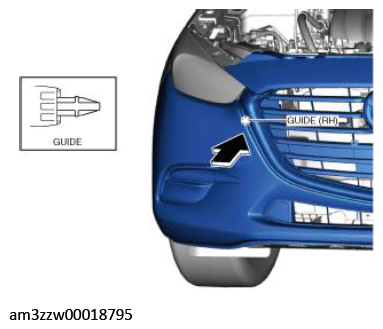

    Fig 2: Pressing Front Bumper (RH)
    G11447535Courtesy of MAZDA MOTORS CORP.
  4. Press in the front bumper in the direction of the arrow shown in the figure and install the guide (LH).

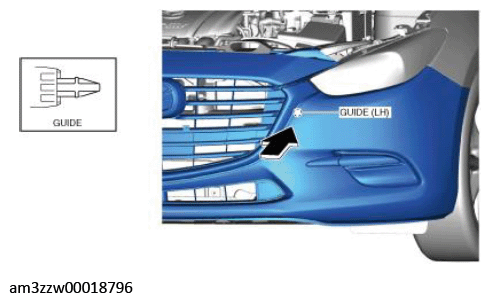

    Fig 3: Pressing Front Bumper (LH)
    G11447536Courtesy of MAZDA MOTORS CORP.
  5. Press in the front bumper in the order of the arrows shown in the figure, and attach the front bumper hooks to the front bumper slider.

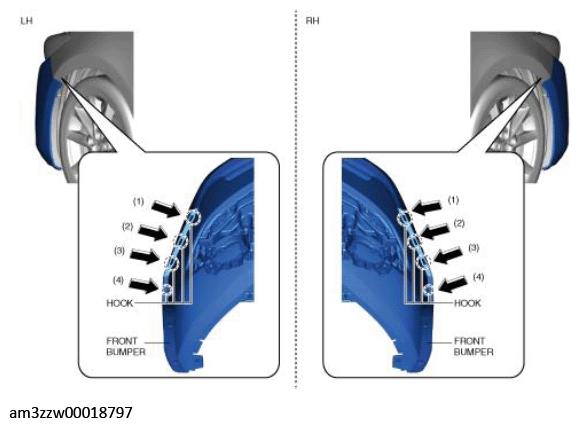

    Fig 4: Attaching Front Bumper Hooks To Front Bumper Slider
    G11447537Courtesy of MAZDA MOTORS CORP.
  6. Install the fasteners.

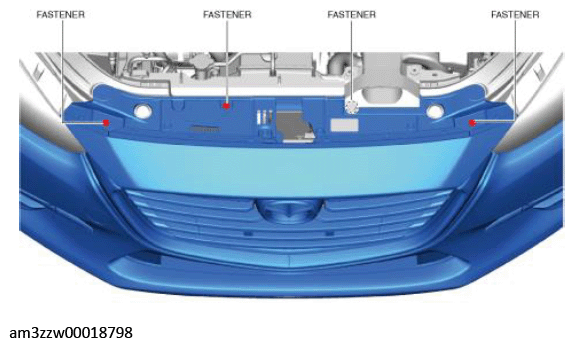

    Fig 5: Locating Front Bumper Fasteners
    G11447538Courtesy of MAZDA MOTORS CORP.
  7. Slightly bend back the front mudguard and install the screws.

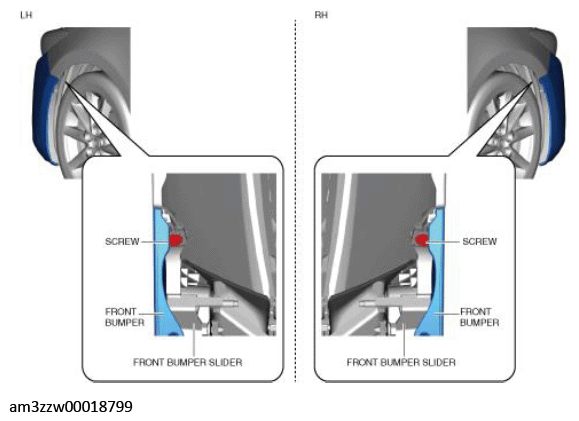

    Fig 6: Installing Front Bumper Slider Screws
    G11447539Courtesy of MAZDA MOTORS CORP.
  8. Temporarily tighten the screws.

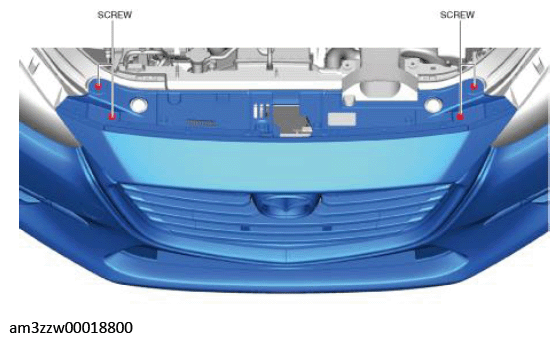

    Fig 7: Locating Front Bumper Screws
    G11447540Courtesy of MAZDA MOTORS CORP.
  9. Adjust the front bumper position so that the clearance between the front bumper and the hood is within the standard clearance shown in the figure.
    Fig 8: Adjusting Front Bumper Position
    G11447541Courtesy of MAZDA MOTORS CORP.
  10. Completely tighten the screws tightened temporarily in Step  8.
    Fig 9: Locating Front Bumper Screws
    G11447540Courtesy of MAZDA MOTORS CORP.
  11. Measure the clearance between the front bumper and the hood and verify that it is within the standard clearance shown in the figure.

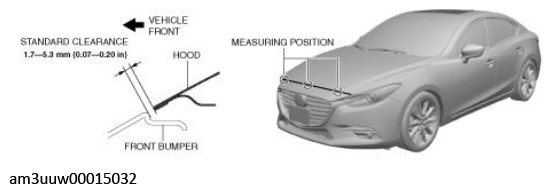

    Fig 10: Measuring Clearance Between Front Bumper And Hood
    G11447543Courtesy of MAZDA MOTORS CORP.
    • If not within the specification, repeat from Step  8 to Step  11 until the clearance between the front bumper and the hood is within the specification.
  12. Install the set plate. (See SET PLATE REMOVAL/INSTALLATION .)
  13. Install the bolts.

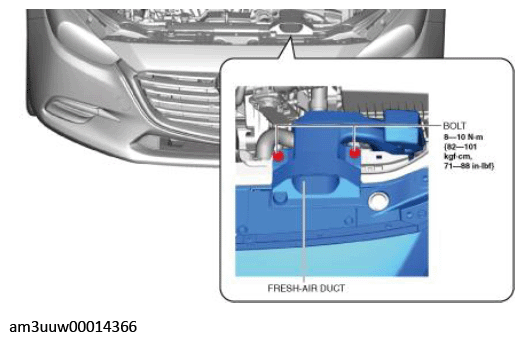

    Fig 11: Locating Fresh Air Duct Bolts
    G11447544Courtesy of MAZDA MOTORS CORP.
  14. Partially peel back front under cover No. 1 and install the fasteners first and then screws to the positions shown in the figure.

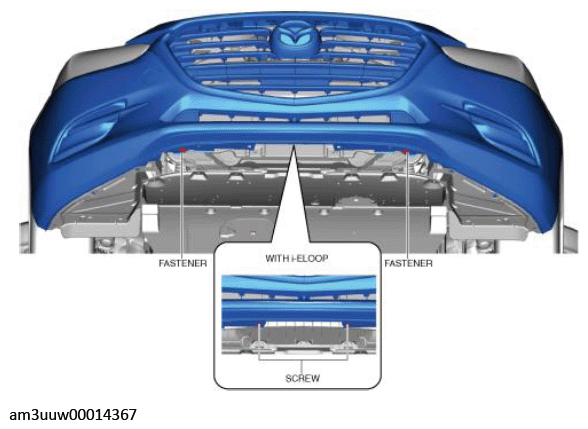

    Fig 12: Locating Front Under Cover Fasteners
    G11447545Courtesy of MAZDA MOTORS CORP.
  15. Insert the front under cover No. 1 guide into the inner side of the front bumper.

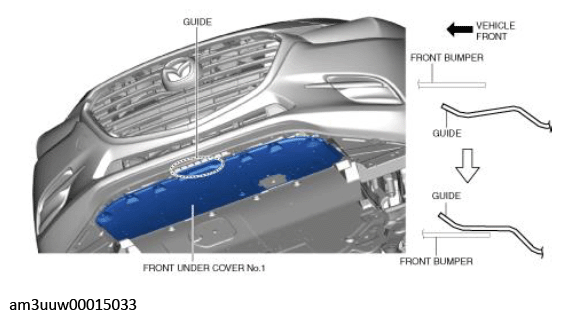

    Fig 13: Inserting Front Under Cover No. 1 Guide Into Inner Side Of Front Bumper
    G11447546Courtesy of MAZDA MOTORS CORP.
  16. Install the fasteners first and then screws to the positions shown in the figure.

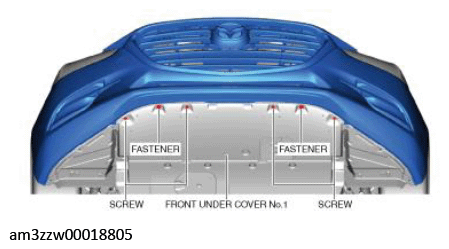

    Fig 14: Locating Front Under Cover Fasteners And Screws
    G11447547Courtesy of MAZDA MOTORS CORP.
  17. Install the fasteners.

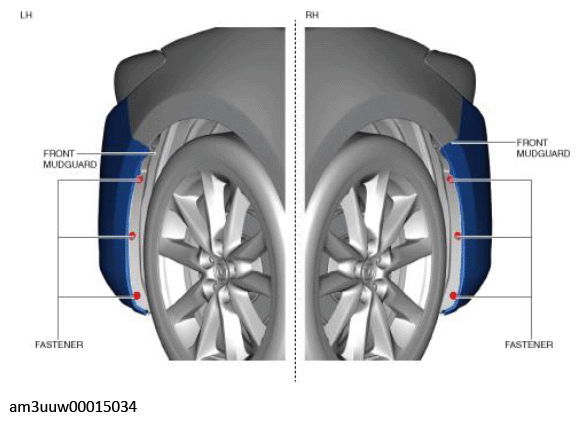

    Fig 15: Locating Front Mudguard Fasteners
    G11447548Courtesy of MAZDA MOTORS CORP.
  18. Install the screws.

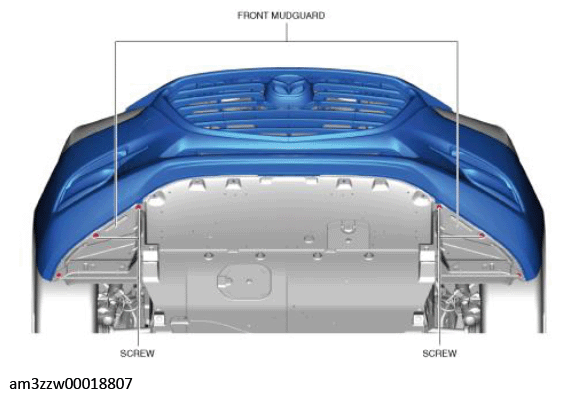

    Fig 16: Locating Front Mudguard Screws
    G11447549Courtesy of MAZDA MOTORS CORP.
  19. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
