Balance Spring Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

If the balance spring is removed without supporting the trunk lid, the trunk lid may fall off and cause injury. When removing the balance spring, always use two persons to perform the work.

Using a crescent wrench, remove the balance spring in the direction of the arrow shown in the figure from the trunk lid hinge.

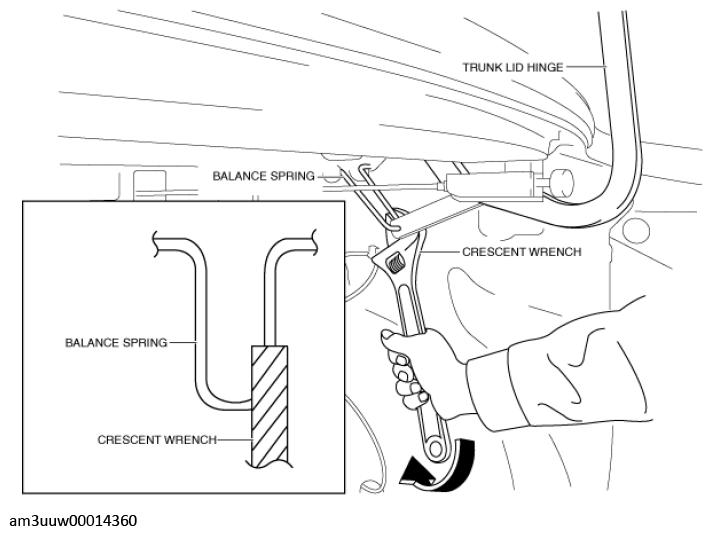

Fig 1: Removing Balance Spring Using Crescent Wrench
Courtesy of MAZDA MOTORS CORP.
Remove the LH side balance spring shown in the figure from the hooks.

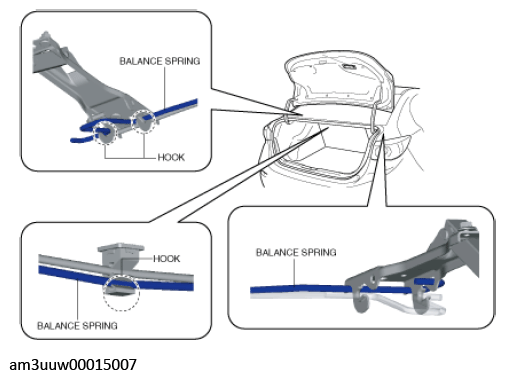

Fig 2: Removing LH Side Balance Spring From Hooks
Courtesy of MAZDA MOTORS CORP.
Remove the RH side balance spring shown in the figure from the hooks.

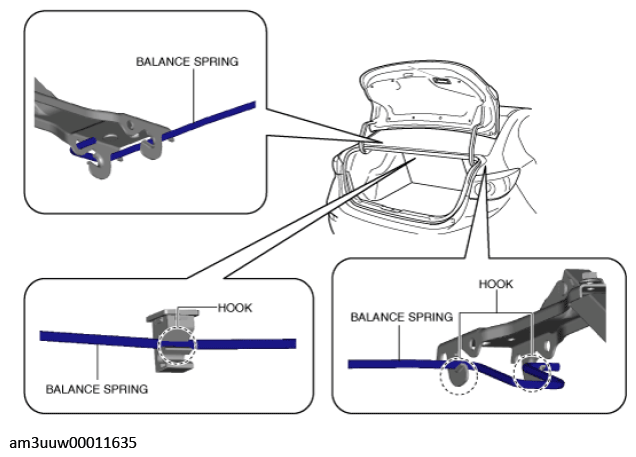

Fig 3: Removing RH Side Balance Spring From Hooks
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
