Shroud Upper Member Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Set plate (See SET PLATE REMOVAL/INSTALLATION .)
    2. Front bumper (See FRONT BUMPER REMOVAL .) (See FRONT BUMPER INSTALLATION .)
    3. Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    4. Horn (See HORN REMOVAL/INSTALLATION .)
  3. Remove the wiring harness clip shown in the figure.
    Fig 1: Removing Shroud Upper Member Wiring Harness Clip
    G11447617Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt shown in the figure and set the body ground aside.

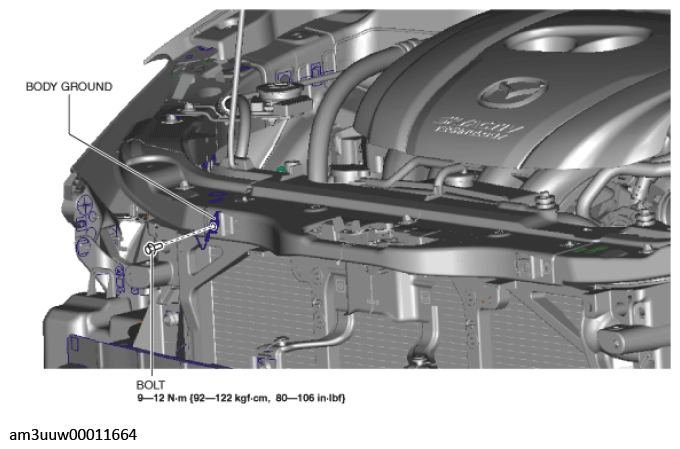

    Fig 2: Removing Shroud Upper Member Bolt
    G11447618Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts shown in the figure and remove the shroud upper member in the direction of the arrow.

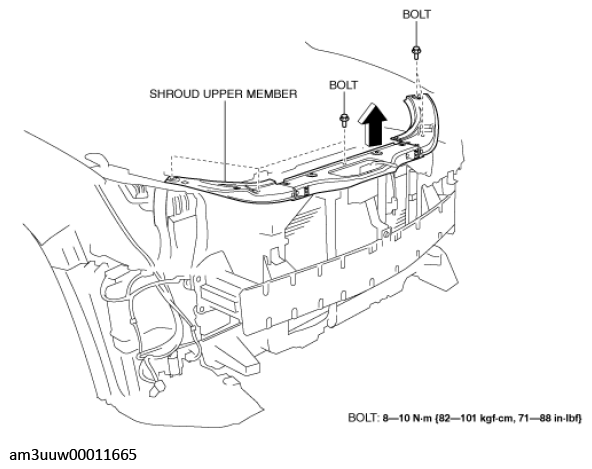

    Fig 3: Removing Shroud Upper Member
    G11447619Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
