Cowl Panel Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    4. Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION .)
  3. Remove the wiring harness clips secured to the cowl panel.
  4. Remove the bolts shown in the figure.

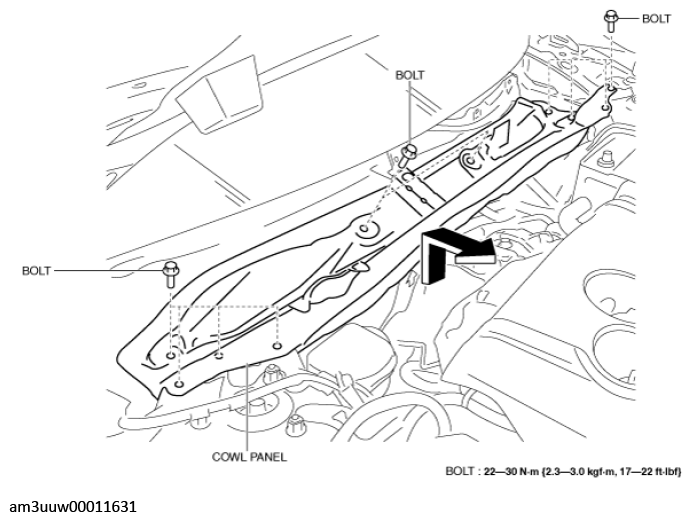

    Fig 1: Removing Cowl Panel Bolts
    G11447528Courtesy of MAZDA MOTORS CORP.
  5. Remove the cowl panel in the direction of the arrow shown in the figure.
  6. Install in the reverse order of removal.
