Installing the instrument panel lower section
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.

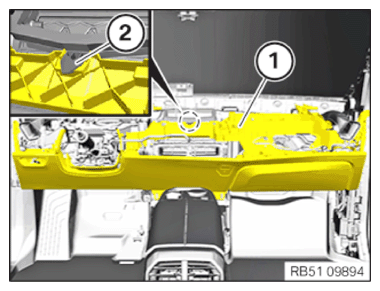

- Insert the instrument panel lower section (1) into the vehicle with the help of a support person.
- Guide in the instrument panel lower section (1) with the help of a support person.
- Connect and lock any connectors and hook the wiring harness into all the holders on instrument panel lower section (1) .

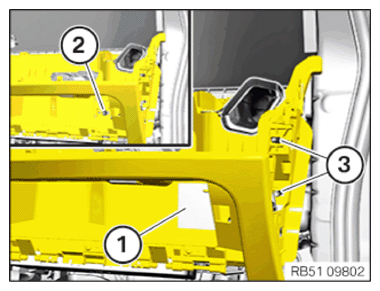

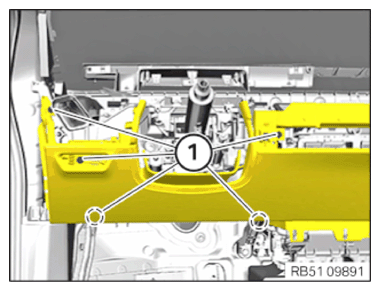

- Position the instrument panel lower section (1) correctly and snap into the detent (2) .
- Tighten nuts (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Support for instrument panel | ||
|---|---|---|
| Hexagon nut or hexagon bolt | Tightening torque | 21 Nm |

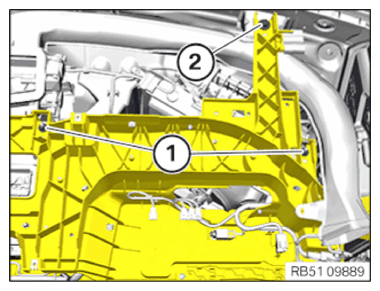

- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Heating and air-conditioning unit to support for instrument panel | ||
|---|---|---|
| hexagon nut M6 | Tightening torque | 8 Nm |

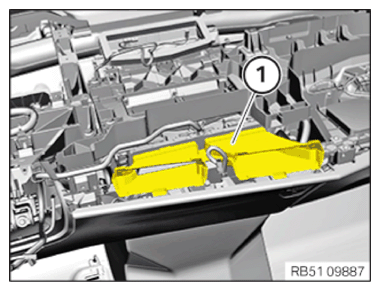

- Mount lid (1) .
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Support for instrument panel | ||
|---|---|---|
| Hexagon nut or hexagon bolt | Tightening torque | 21 Nm |
- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Heating and air-conditioning unit to support for instrument panel | ||
|---|---|---|
| hexagon nut M6 | Tightening torque | 8 Nm |

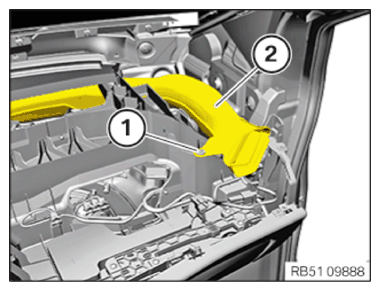

- Tighten the screw (1) of the air duct (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Dashboard | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2.6 Nm |

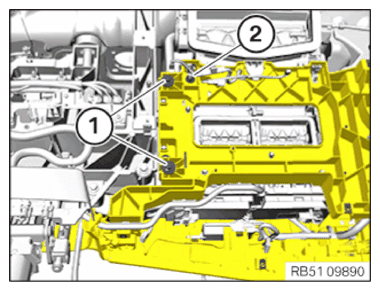

- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Support for instrument panel | ||
|---|---|---|
| Hexagon nut or hexagon bolt | Tightening torque | 21 Nm |
- Tighten nuts (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Heating and air-conditioning unit to support for instrument panel | ||
|---|---|---|
| hexagon nut M6 | Tightening torque | 8 Nm |
- Install the air duct (1) .
Follow-up work
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to INSTALLING THE CENTER STACK TRIM .
- Refer to INSTALLING THE UPPER DASHBOARD TRIM .
- Refer to INSTALLING THE INSTRUMENT CLUSTER .
- Refer to INSTALLING THE RIGHT VENTILATION GRILLE .
- Refer to INSTALLING THE CENTER VENTILATION GRILLE .
- Refer to INSTALLING THE LEFT VENTILATION GRILLE .
- Refer to INSTALLING THE AIR DUCT FOR INDIRECT VENTILATION .
- Refer to INSTALLING THE SPEAKER HOLDER ON THE DASHBOARD .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to INSTALLING STEERING WHEEL .
- Refer to INSTALLING AIRBAG UNIT OF THE STEERING WHEEL .
- Refer to FITTING THE STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE A-PILLAR TRIM PANEL AT THE CENTER LEFT AND RIGHT .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING DOOR SILL COVER STRIP, FRONT RIGHT .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE BOTTOM FRONT CENTER CONSOLE .
- Refer to INSTALLING THE STORAGE TRAY FOR THE NEAR FIELD COMMUNICATION .
- Refer to ACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
