Installing the support for the bumper cover
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

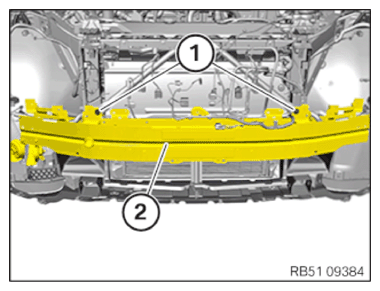

- Insert the support (2) and position it correctly.

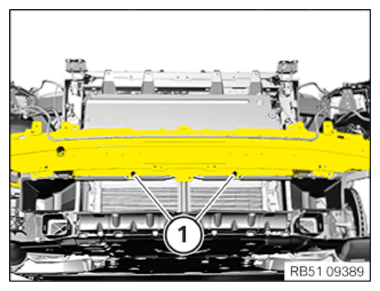

- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Reinforcement strut on upper front connection/bumper bracket | ||
|---|---|---|
| M8x20 screw Replace screws |
Tightening torque | 28 Nm |
NOTE:
Perform the steps on the right and left side.

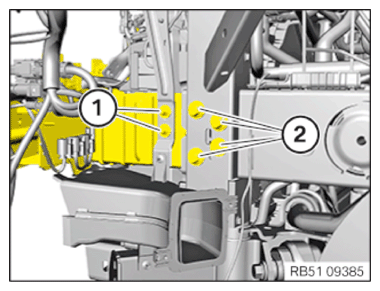

- Replace screws (1)
.
Parts: Screws
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Lock support on bumper bracket | ||
|---|---|---|
| M8x20 screw Replace screws |
Tightening torque | 28 Nm |
- Tighten the screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Front bumper bracket to engine mount | ||
|---|---|---|
| Hexagon screw with flange Replace screw |
Tightening torque | 100 Nm |
| Angle of rotation | 180° | |

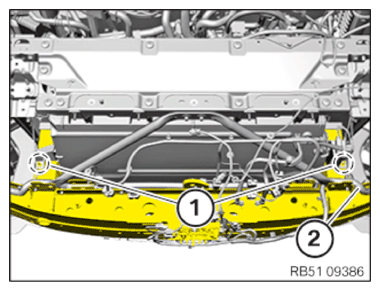

- Mount the expanding rivets (1) .
- Mount the expanding rivets (1) .
- Secure the wiring harness (2) to the support.
- Connect all connectors and lock.
Follow-up work
- Refer to INSTALLING THE MOUNTING ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE PEDESTRIAN PROTECTION SENSOR .
- Refer to INSTALLING THE FRONT VEHICLE SOUND GENERATOR (VSG) WITH THE HOLDER .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING THE BOTTOM AUTOMATIC AIR FLAP CONTROL .
- Refer to INSTALLING WASHER FLUID RESERVOIR .
- Refer to INSTALLING THE FRONT MULTIFUNCTION FRAME .
- Refer to INSTALLING THE LEFT AND RIGHT HEADLIGHT .
- Refer to INSTALLING THE FRONT BUMPER COVER .
- Refer to INSTALLING THE FRONT ORNAMENTAL GRILLE/RADOME .
- Refer to INSTALLING THE FRONT RADIATOR GRILL FRAME .
- Refer to INSTALLING THE NUMBER PLATE BASEPLATE FOR THE LICENSE PLATE AT THE FRONT .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to ADJUSTING HEADLIGHTS .
- Refer to CLOSING THE ENGINE COMPARTMENT LID .
- Refer to PUTTING THE FRONT RADAR SENSORS INTO OPERATION .
